Midland class 2441
London, Midland & Scottish class 3F
go back
Great Britain | 1899
60 produced

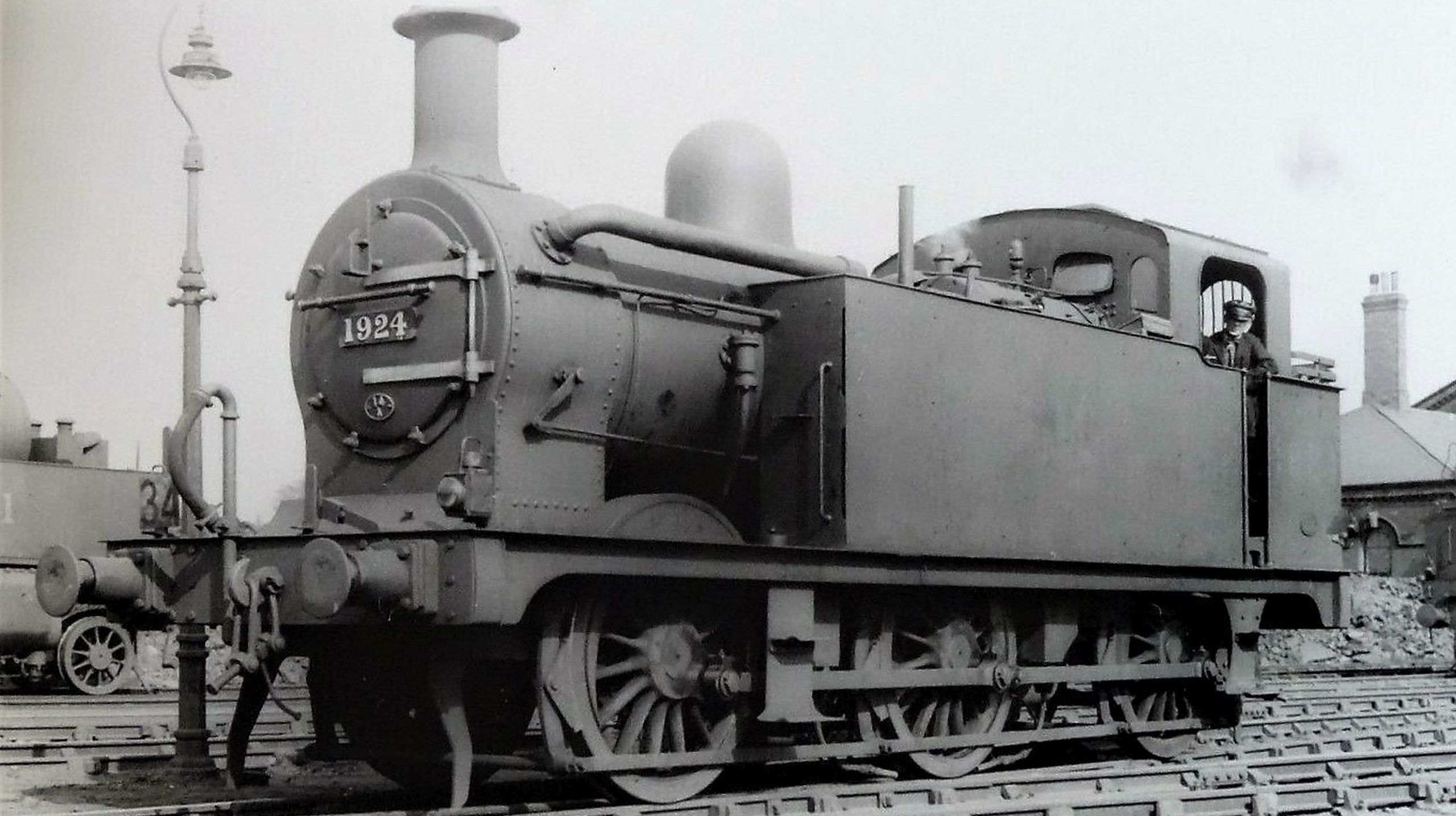

Image of locomotive
flickr/Stratfordman72

The class 2441 consisted of 60 0-6-0T side tank locomotives which were designed by Samuel Waite Johnson for mixed traffic. Johnson used the same boiler with a round-topped firebox as he had used for his 0-4-4T. The first 20 received a condenser for goods service around Blackfriars in London. In total, 60 had been built by Vulcan Foundry by 1902. In 1918, Henry Fowler equipped them with new boilers with a Belpaire firebox. Six years later, he used the class 2441 as basis for the 3F “Jinty” that had a smaller boiler, but is often credited to have reached 60 mph or 97 km/h.

Originally numbered 2441 to 2460 and 2741 to 2780, they were renumbered to 1900 to 1959 in 1907. The LMS assigned them to power class 3F and renumbered them in the 7200 range in 1934. British Railways took over all 60 in 1948 and put a 4 in front of their numbers. The first two were withdrawn in 1954, but it took until 1966 until all were gone.

General
Built1899-1902
ManufacturerVulcan Foundry
Wheel arr.0-6-0ST (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase16 ft 6 in
Rigid wheelbase16 ft 6 in
Service weight109,200 lbs
Adhesive weight109,200 lbs
Water capacity1,201 us gal
Fuel capacitycoal
Boiler
Grate area16 sq ft
Firebox area110 sq ft
Tube heating area1,142 sq ft
Evaporative heating area1,252 sq ft
Total heating area1,252 sq ft
Power Plant
Driver diameter55 in
Boiler pressure160 psi
Expansion typesimple
Cylinderstwo, 18 x 26 in
Power
Power sourcesteam
Estimated power550 hp (410 kW)
Starting effort20,830 lbf
Calculated Values
steam locomotive
passenger
freight
Samuel Waite Johnson
last changed: 02/2026
