Great Western Railway class 3300 “Bulldog” and 3441 “Bird”
Great Britain | 1898 | 156 produced
No. 3312 “Bulldog”
No. 3312 “Bulldog”
Locomotive Magazine, February 1899

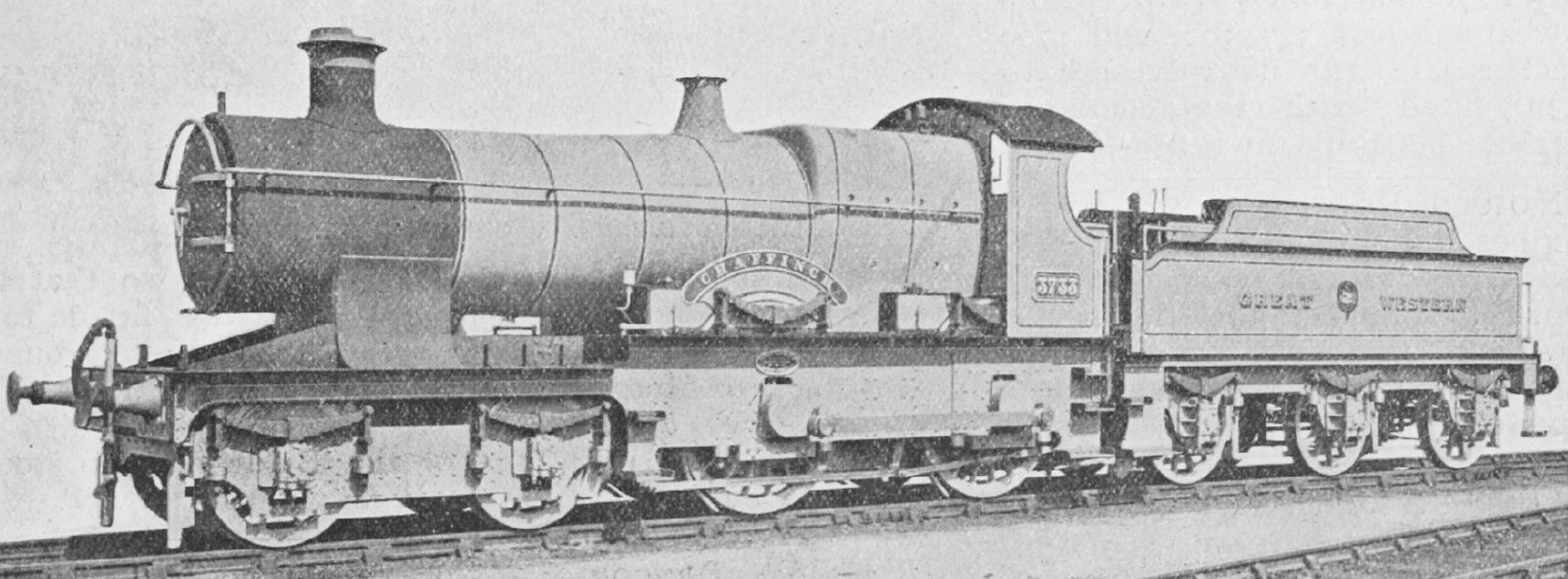

For express trains on more hilly main routes, such as Devon and Cornwall, William Dean envisaged 4-4-0 locomotives with a coupled wheel diameter of five feet and eight inches. Based on his Duke class, he built No. 3312 “Bulldog” in 1898 with a larger boiler. Like the Duke, it had an outer frame that had recesses in the area of the cranks of the coupling rods. The boiler also had a steam dome, but the new boiler caught the eye with a raised Belpaire firebox

No. 3707 “Francis Mildmay”, later No. 3417 “Lord Mildmay of Flete”
No. 3707 “Francis Mildmay”, later No. 3417 “Lord Mildmay of Flete”

The boiler was designed by George Jackson Churchward, who was still Dean's assistant at the time. The boiler was to become the GWR's standard boiler No. 2 and initially had a consistent diameter from back to front. In October 1899, No. 3352 “Camel” was completed, which is considered the first production example of the Bulldog class. With it, the boiler no longer had a steam dome and tapered from the back to the front.

No. 3733 “Chaffinch” from the Bird class
No. 3733 “Chaffinch” from the Bird class
Locomotive Magazine, June 1909

In the following years several series were created, which showed some differences among themselves. Some continued to have a parallel boiler and others had a tapered boiler of varying design. Soon, the tapered boiler prevailed, as well as straight outer frames. Although the locomotives were initially referred to as the Camel class due to the first production engine, the prototype's name "Bulldog" soon caught on.

By 1909, 141 Bulldog-class examples had been built, 20 of which had been converted from existing Duke-class locomotives. In 1909 and 1910, another 15 examples of a slightly modified design, known as the Bird class, were built. It differed from the Bulldog class mainly in higher outer frames, a new bogie and a longer smoke box.

All locomotives of the two classes were retrofitted with a superheater between 1910 and 1914. Since the 4-4-0 locomotives of the GWR were initially provided with different number ranges across the classes, they were renumbered in 1912. The locomotives of the Bulldog and Bird classes received the number range between 3300 and 3455 without gaps. In August 1929, the first machine of the Bulldog class was decommissioned, but the decommissioning did not take place in larger numbers until 1934 and the last example survived until 1951. From of the Bird class, the first example only disappeared in 1948, but the last one also in 1951.

VariantBulldogBulldog superheatedBird
General
Built1898-19091909
ManufacturerSwindon
Axle config4-4-0 (American)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length56 ft 2 1/4 in
Wheelbase22 ft 3 in
Fixed wheelbase8 ft 6 in
Total wheelbase46 ft 4 in
Service weight116,033 lbs
Adhesive weight77,056 lbs
Total weight198,352 lbs
Axle load39,424 lbs
Water capacity4,203 us gal3,603 us gal
Fuel capacity13,440 lbs (coal)13,228 lbs (coal)
Power
Power sourcesteam
Estimated power775 hp (578 kW)1,050 hp (783 kW)800 hp (597 kW)
Optimal speed26 mph32 mph25 mph
Starting effort18,954 lbf21,060 lbf20,534 lbf
Power Plant
Driver diameter68 in
Boiler pressure180 psi200 psi195 psi
Expansion typesimple
Cylinderstwo, 18 x 26 in
Boiler
Grate area20.4 sq ft20.2 sq ft
Firebox area125 sq ft121.8 sq ft120.6 sq ft
Tube heating area1,538 sq ft1,145 sq ft1,397 sq ft
Evaporative heating area1,663 sq ft1,266.8 sq ft1,517.6 sq ft
Superheater area82.2 sq ft
Total heating area1,663 sq ft1,349 sq ft1,517.6 sq ft
Calculated Values
steam locomotive
passenger
William Dean
last changed: 06/2022
