Paris-Lyon-Méditerranée No. 2601 to 2760
French State Railway 230 B
go back
| 1905
160 produced

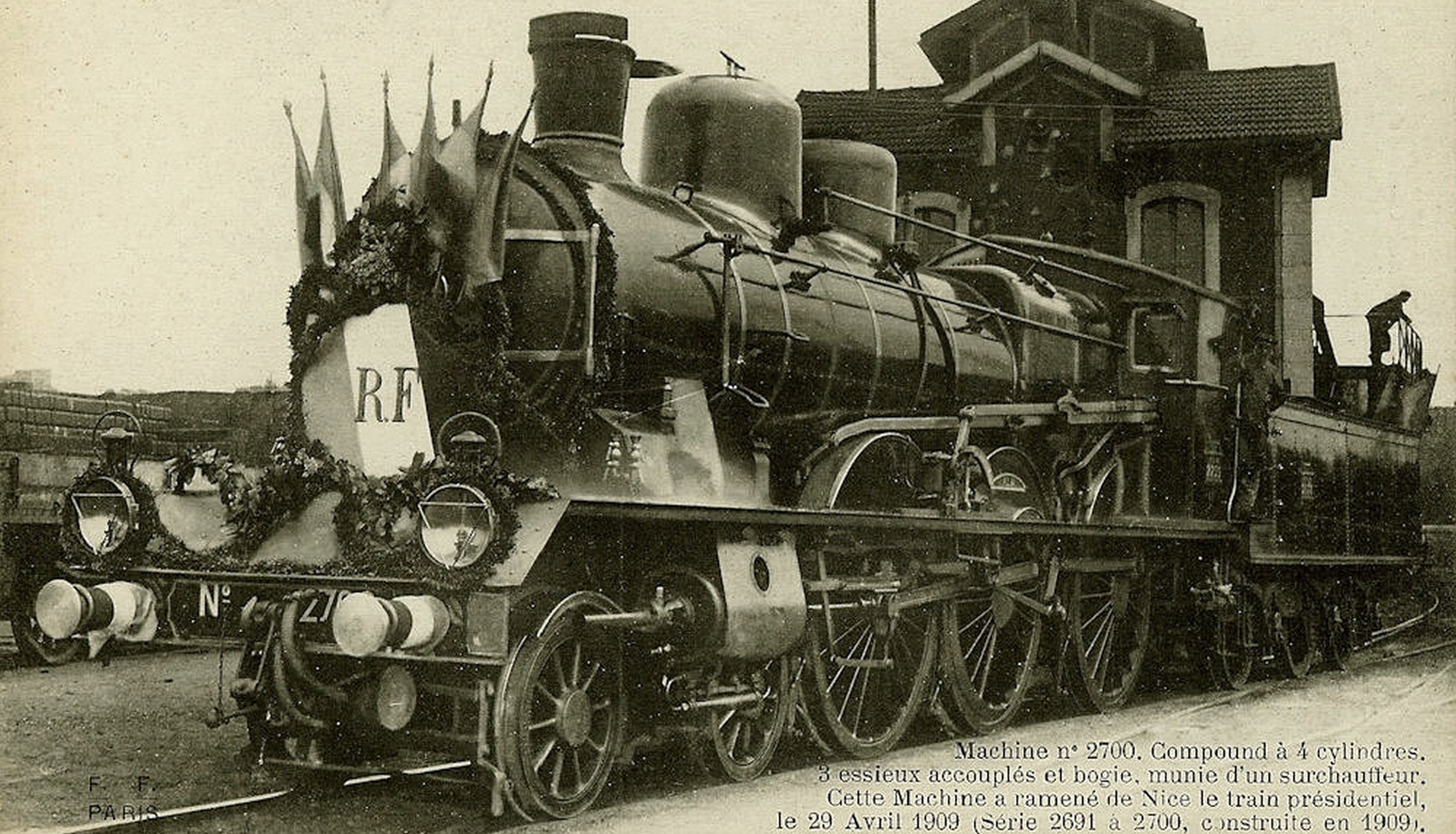

2600 with the presidential train in April 1909 at Nice
2600 with the presidential train in April 1909 at Nice
Fernand Fleury

The locomotives numbered 2601 to 2760 with a 4-6-0 wheel arrangement were built for express service. They had driving wheels with a diameter of 2,000 mm and four cylinders which worked in compound. In contrast to most De Glehn compounds, all cylinders were mounted side by side. But they still drove different axles, with the high pressure cylinders working on the second driving axle and the low pressure cylinders working on the first driving axle. The boiler used finned Serve tubes to increase its heating surface.

160 were built by different companies in France, Germany and Austria between 1905 and 1912. Only ten delivered by Henschel in 1909 had a Schmidt superheater from the start. These were numbered 2691 to 2700 and had their high pressure cylinder diameter increased from 340 to 370 mm. In 1924 they had become 230 B 1 to 160, and these numbers were still used by the SNCF from 1938. In 1928, the first five were fitted with another type of superheater

In 1937, the former 2693 was rebuilt in a radical way. Its main feature was a Velox boiler for more rapid steam generation that burned oil. The cab was moved to the front and the whole locomotive received a casing. It was designated 230 E 93 and became SNCF 230 E 1 in 1938.

Variantsaturatedsuperheated
General
Built1905-1912
ManufacturerSchneider, Franco-Belge, Five-Lille, Wiener Neustadt, Henschel, Hainaut
Wheel arr.4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length loco39 ft 9 3/4 in
Wheelbase27 ft 11 13/16 in
Rigid wheelbase15 ft 8 3/16 in
Total wheelbase53 ft 7 11/16 in
Empty weight142,749 lbs148,878 lbs
Service weight154,985 lbs162,480 lbs
Adhesive weight110,187 lbs111,333 lbs
Axle load36,729 lbs37,589 lbs
Water capacity5,310 us gal
Fuel capacity7,716 lbs (coal)
Boiler
Grate area32.1 sq ft
Firebox area166 sq ft
Tube heating area2,214.7 sq ft1,483.5 sq ft
Evaporative heating area2,380.7 sq ft1,649.5 sq ft
Superheater area362.1 sq ft
Total heating area2,380.7 sq ft2,011.6 sq ft
Variantsaturatedsuperheated
Power Plant
Driver diameter78.7 in
Boiler pressure232 psi
Expansion typecompound
Cylindersfour, HP: 13 3/8 x 25 9/16 in
and LP: 21 1/4 x 25 9/16 in
four, HP: 14 9/16 x 25 9/16 in
and LP: 21 1/4 x 25 9/16 in
Power
Power sourcesteam
Estimated power1,073 hp (800 kW)1,207 hp (900 kW)
Starting effort16,455 lbf18,518 lbf
with start valve19,746 lbf22,222 lbf
Calculated Values
steam locomotive
express
De Glehn compound
last changed: 05/2026

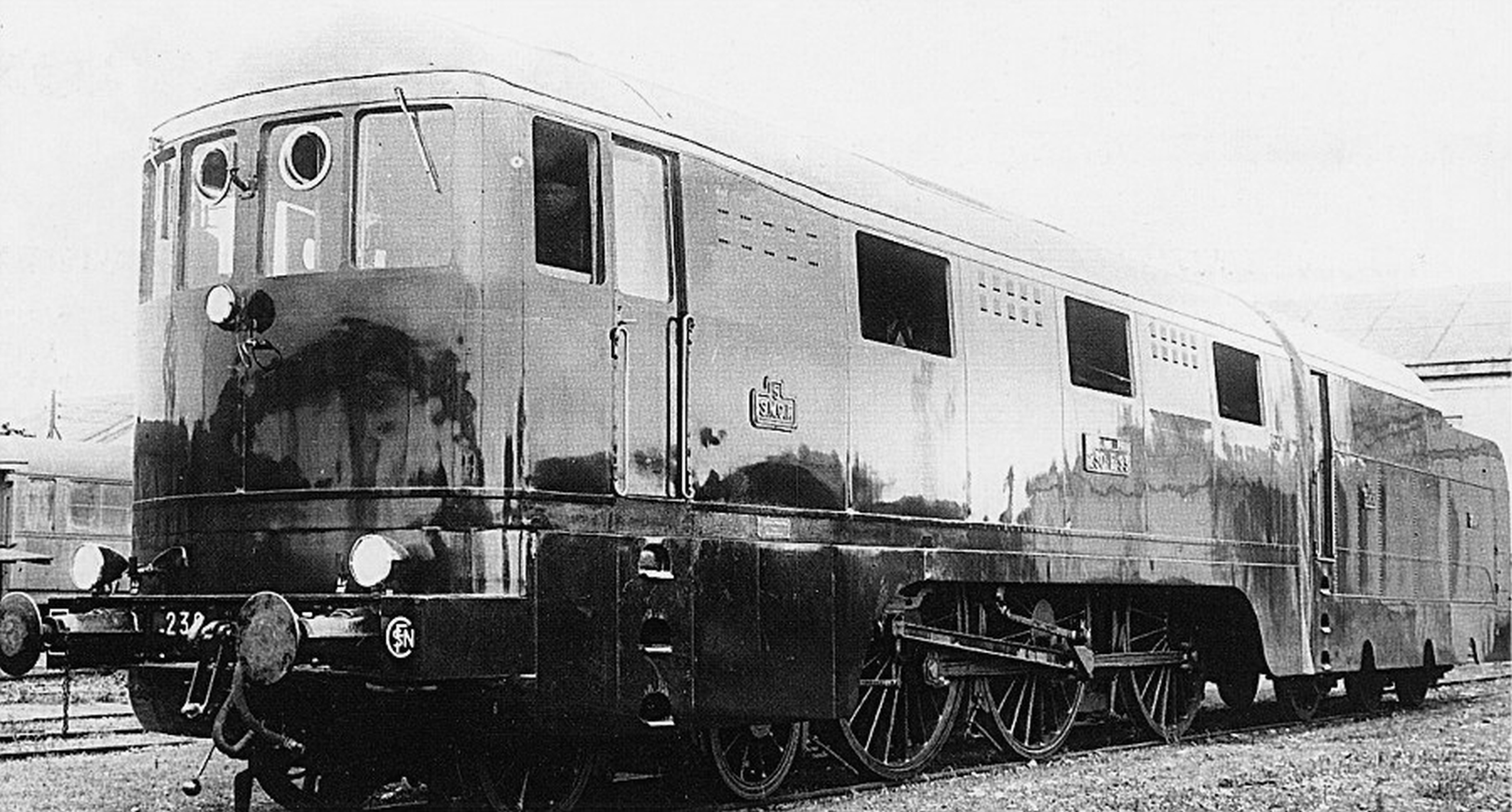

The prototype 230 E 93
