Cuban Central Railways No. 40 to 57
go back
Cuba | 1904
18 produced

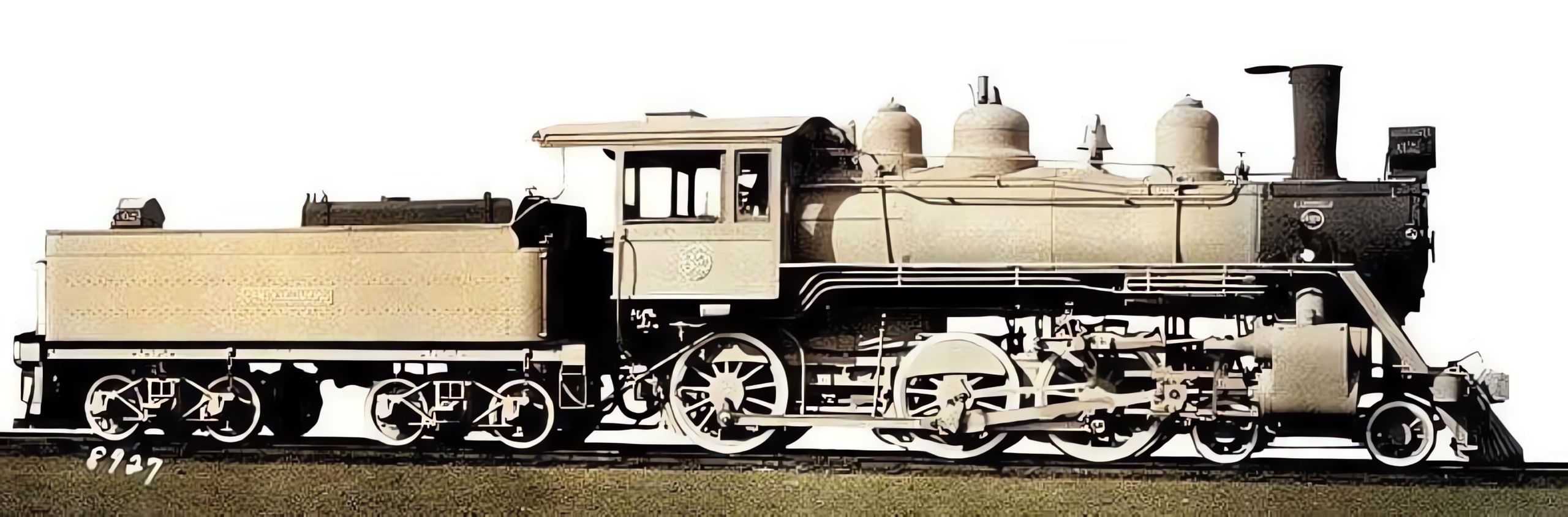

Image of locomotive
Martin Coombs / www.railwaysofthefarsouth.co.uk

Among several types of Baldwin locomotives ordered by the Cuba Central Railways Ltd., there were 18 4-6-0 locomotives which were built between 1904 and 1912. Although they were officially listed as freight locomotives with a driver diameter of 56 inches (1,422 mm), it seems like they were also used in passenger service. With some differences in detail, there were numbers 41 to 49 built between 1904 and 1907 and numbers 50 to 57 built in 1911 and 1912.

They were classified by Baldwin as their type 10-30 D. The first three received tenders with 3,000 gallons of water and eight tons of coal and all others received tenders with 3,500 gallons of water and the same amount of coal. Most had Stephenson valve gear, but the last three got Walschaerts valve gear. Only No. 54 got a Baldwin smokebox superheater. Numbers 50 to 57 later came to the Ferrocarriles Unidos de la Habana and were numbered 61 to 68.

Variant41-4950-57
General
Built1904-19071911-1912
ManufacturerBaldwin
Axle config4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase24 ft 4 in25 ft
Rigid wheelbase14 ft
Total wheelbase46 ft 11 in47 ft 7 1/2 in
Service weight109,540 lbs114,000 lbs
Adhesive weight97,560 lbs88,000 lbs
Total weight180,000 lbs184,000 lbs
Axle load32,520 lbs29,335 lbs
Water capacity3,500 us gal
Fuel capacity16,000 lbs (coal)
Boiler
Grate area16.9 sq ft
Firebox area127.8 sq ft133 sq ft
Tube heating area1,350.7 sq ft1,280 sq ft
Evaporative heating area1,478.5 sq ft1,413 sq ft
Total heating area1,478.5 sq ft1,413 sq ft
Variant41-4950-57
Power Plant
Driver diameter56 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 18 x 24 in
Power
Power sourcesteam
Estimated power725 hp (541 kW)
Starting effort21,245 lbf
Calculated Values
steam locomotive
freight
last changed: 07/2025
