Ulster & Delaware class 30
go back
United States | 1906
12 produced

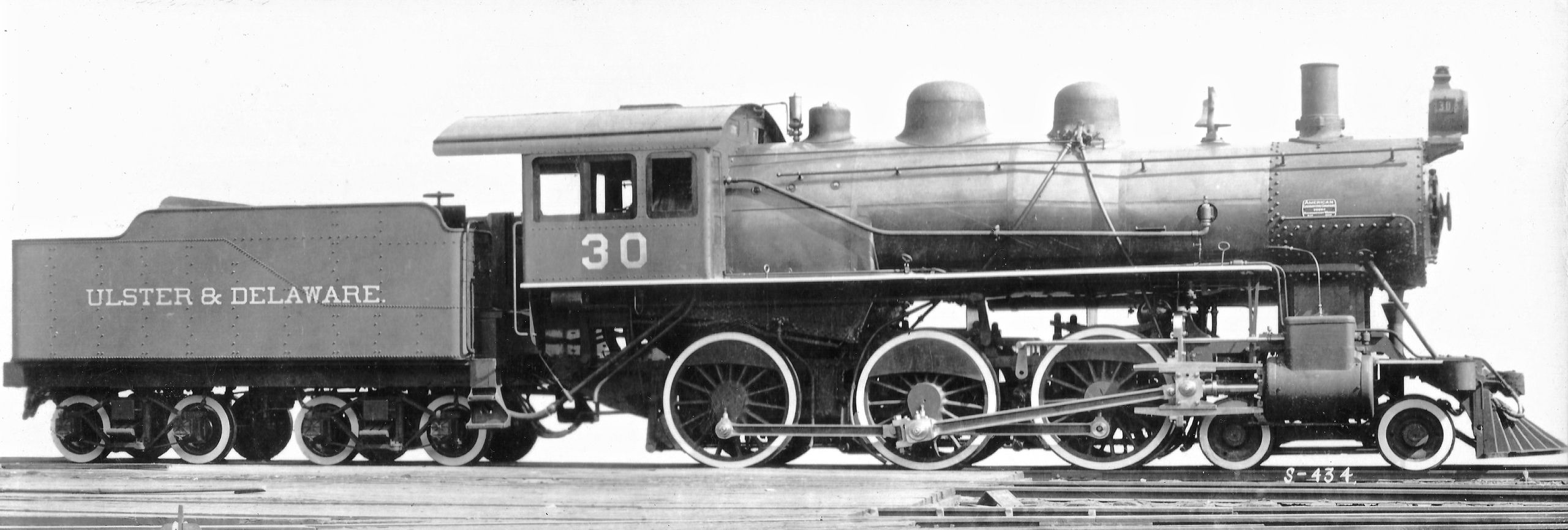

Works photo
Works photo
ALCO

As this railroad was mainly built to haul heavy tourist trains into the Catskill Mountains, it needed powerful passenger locomotives. In 1906 and 1907, ALCO-Schenectady built two batches of six Ten-wheelers each which were numbered 30 to 41 by their operator. Their drivers measured 63 inches and the cylinders were 20 inches in diameter and had a stroke of 26 inches. They had slide valves which were actuated by Stephenson valve gear.

Despite a starting tractive effort of 28,000 pounds, they sometimes still needed helpers up the steep mountains. In addition to the passenger trains, they also had to haul produce like milk what still required the ability to reach adequate speeds. Only four were superheated in 1923 and 1924. In the same process they received a cylinder diameter of 21 inches and piston valves, but retained their Stephenson valve gear. When the U&D was integrated into the New York Central in 1932, they became class FX No. 808 to 818. The last ones were retired in the late forties.

Variantas builtsuperheated
General
Built1906-19071923-1924
ManufacturerALCOU&D
Wheel arr.4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length60 ft 9 in
Wheelbase24 ft 9 in
Rigid wheelbase14 ft
Total wheelbase52 ft 5 in
Service weight164,000 lbs
Adhesive weight125,000 lbs
Total weight271,600 lbs
Water capacity5,000 us gal
Fuel capacity20,000 lbs (coal)
Boiler
Grate area43.5 sq ft
Firebox area149 sq ft
Tube heating area2,268 sq ft1,891 sq ft
Evaporative heating area2,417 sq ft2,040 sq ft
Superheater area387 sq ft
Total heating area2,417 sq ft2,427 sq ft
Variantas builtsuperheated
Power Plant
Driver diameter63 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 20 x 26 intwo, 21 x 26 in
Power
Power sourcesteam
Estimated power1,200 hp (895 kW)1,350 hp (1,007 kW)
Starting effort28,063 lbf30,940 lbf
Calculated Values
steam locomotive
passenger
last changed: 09/2026

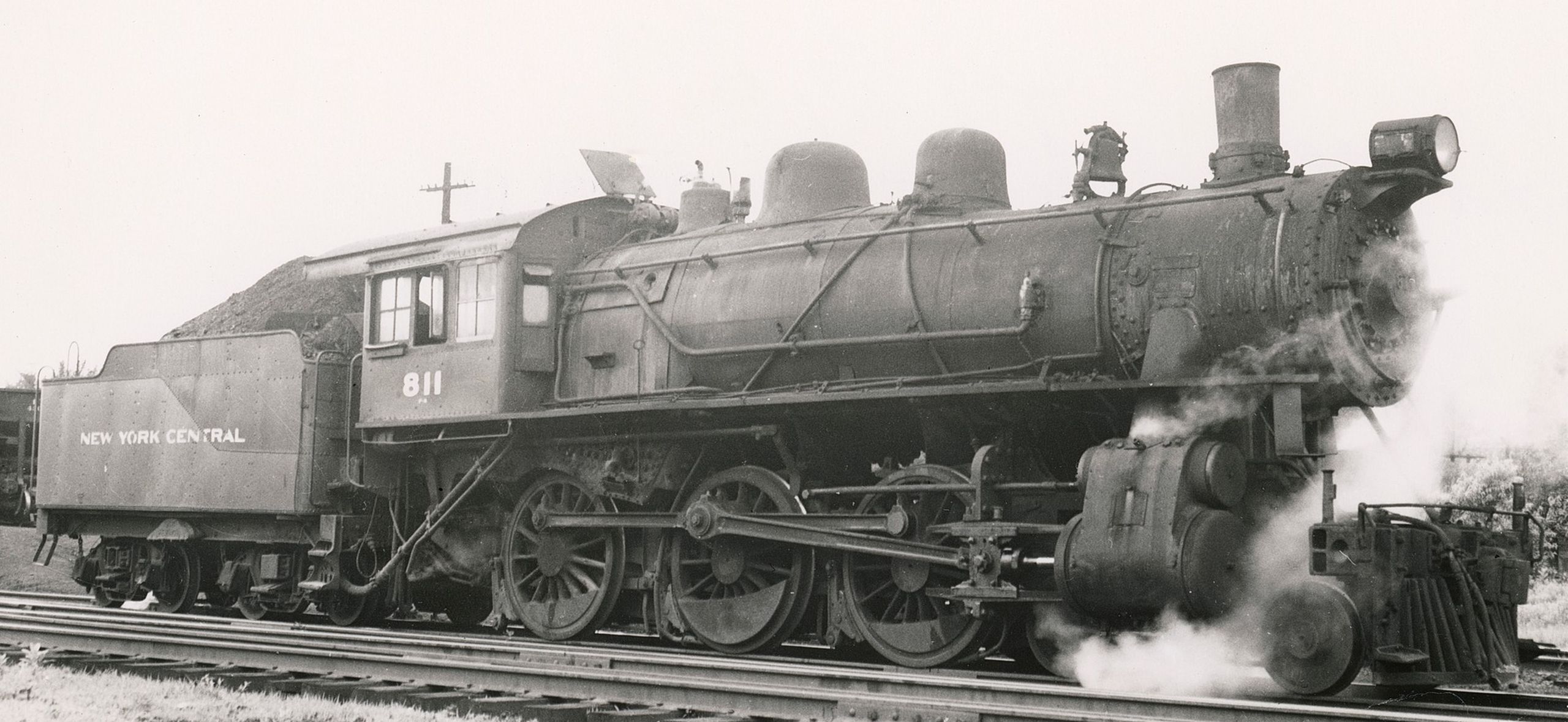

No. 811 after being superheated and with New York Central markings at Oneonta, New York
No. 811 after being superheated and with New York Central markings at Oneonta, New York
Ronald Amberger collection

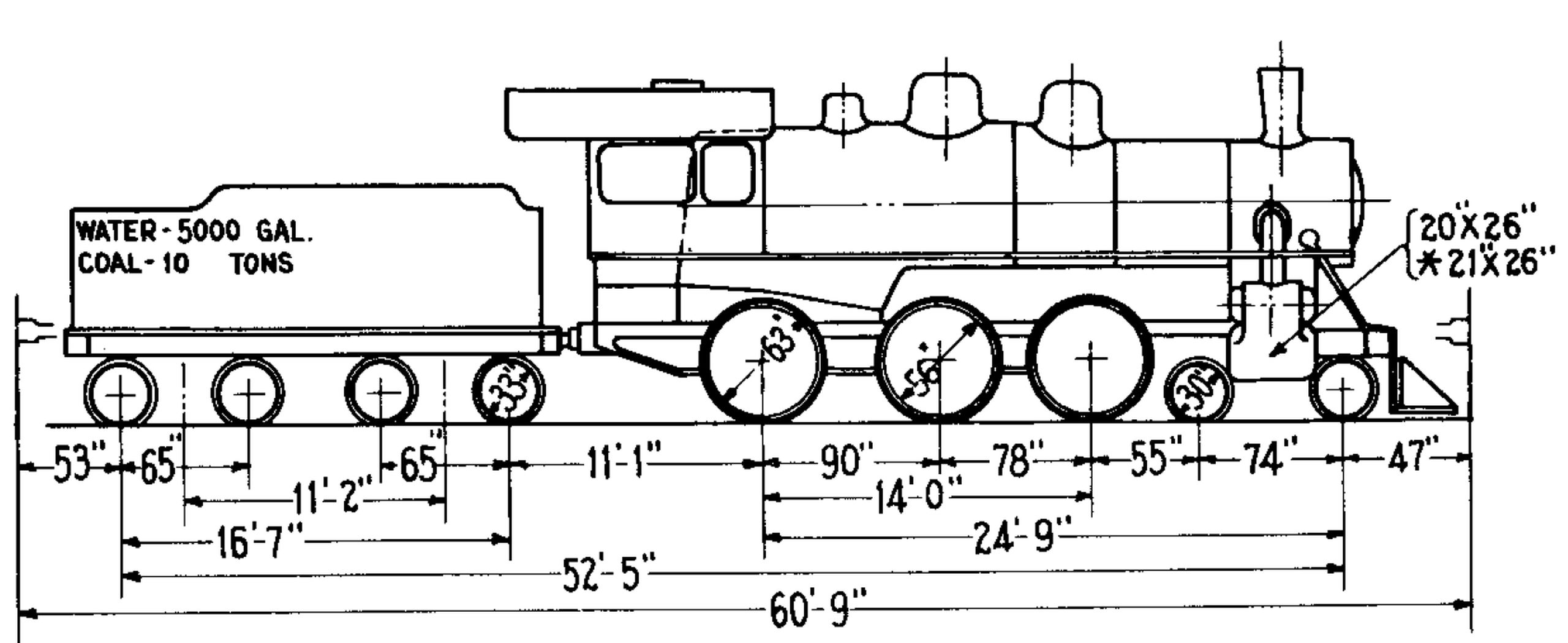

Schematic drawing
Schematic drawing
New York Central loco diagrams, 1944
