Great Northern (IE) class PP
go back
Ireland | 1896
17 produced

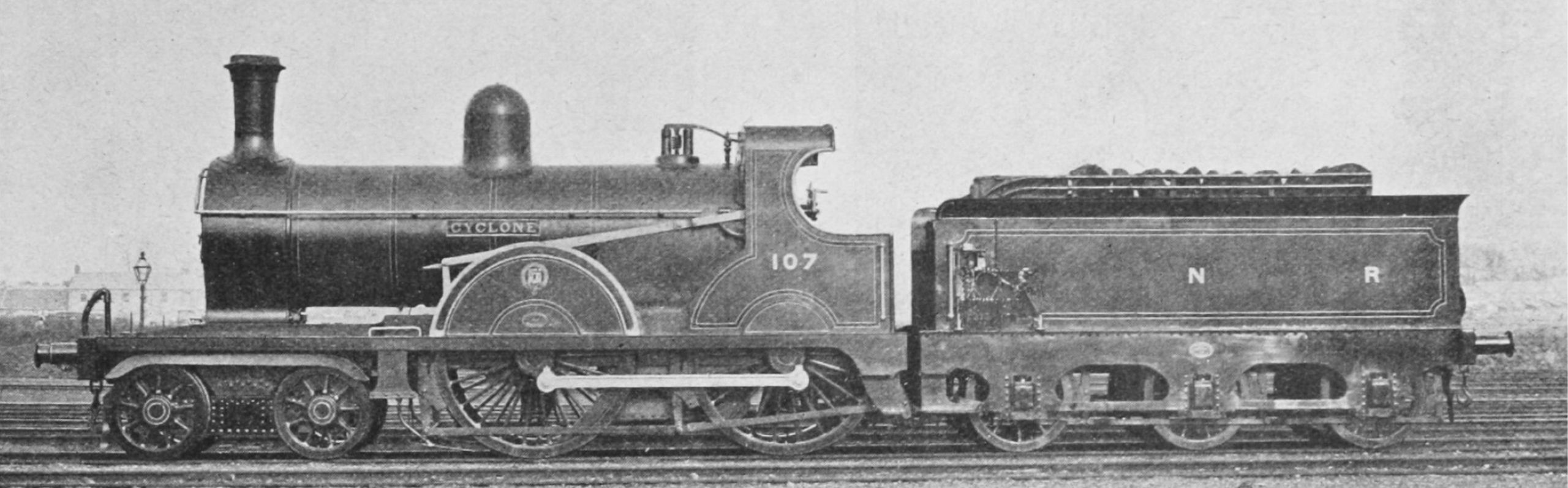

Image of locomotive
Locomotive Magazine, May 1906

The class PP was a 4-4-0 introduced in 1896 by Charles Clifford, originally designed for mail trains between Dublin and Belfast. At this time, they were the heaviest and most powerful locomotives in Ireland. Compared to the earlier class P designed by J.C. Park, they had a larger firebox and a cylinder diameter of 18 instead of 17 inches. The first batch of three locomotives was built in 1896 by Beyer, Peacock & Co. and was also called “Precursor class” after No. 70, the first of the batch. Three more followed in 1898 which initially had cylinders of 18.5 inches. As early as in 1899 they were relegated to slower lines.

Two more were built in 1906 which were also called “Tornado class” after No. 106. These had a boiler pressure that had been increased from 160 to 175 psi. Nine locomotives of another variant were built in 1910 and 1911. These had a Phoenix superheater and two of the batch had came from the GNR's shops in Dundalk. Boiler pressure was initially 160 psi and was later increased to 175 psi. As the Phoenix superheater did not fulfill all requirements, the whole class was rebuilt with new boilers with a Robinson superheater between 1917 and 1930. These were now called class PPS. The last class member was withdrawn in 1963.

Variant1896 batch1906 batch1910 batchsuperheated
General
Built1896-189819061910-19111917-1930
ManufacturerBeyer, Peacock & Co., DundalkDundalk
Wheel arr.4-4-0 (American)
Gauge5 ft 3 in (Irish broad gauge)
Dimensions and Weights
Wheelbase20 ft 4 1/2 in
Total wheelbase40 ft 9 1/4 in
Service weight94,080 lbs97,440 lbs104,160 lbs100,800 lbs
Adhesive weight64,400 lbs67,648 lbs
Axle load35,280 lbs34,048 lbs
Fuel capacitycoal
Boiler
Grate area18.3 sq ft
Firebox area109 sq ft106.5 sq ft106.2 sq ft107.5 sq ft
Tube heating area1,013 sq ft757 sq ft838 sq ft
Evaporative heating area1,122 sq ft1,119.5 sq ft863.2 sq ft945.5 sq ft
Superheater area168.6 sq ft189.7 sq ft
Total heating area1,122 sq ft1,119.5 sq ft1,031.8 sq ft1,135.2 sq ft
Variant1896 batch1906 batch1910 batchsuperheated
Power Plant
Driver diameter79 in
Boiler pressure160 psi175 psi160 psi175 psi
Expansion typesimple
Cylinderstwo, 18 x 24 in
Power
Power sourcesteam
Estimated power525 hp (391 kW)550 hp (410 kW)750 hp (559 kW)800 hp (597 kW)
Starting effort13,387 lbf14,642 lbf13,387 lbf14,642 lbf
Calculated Values
steam locomotive
express
Charles Clifford
