Imperial Russian Railways series П
go back
Russia | 1891
169 produced

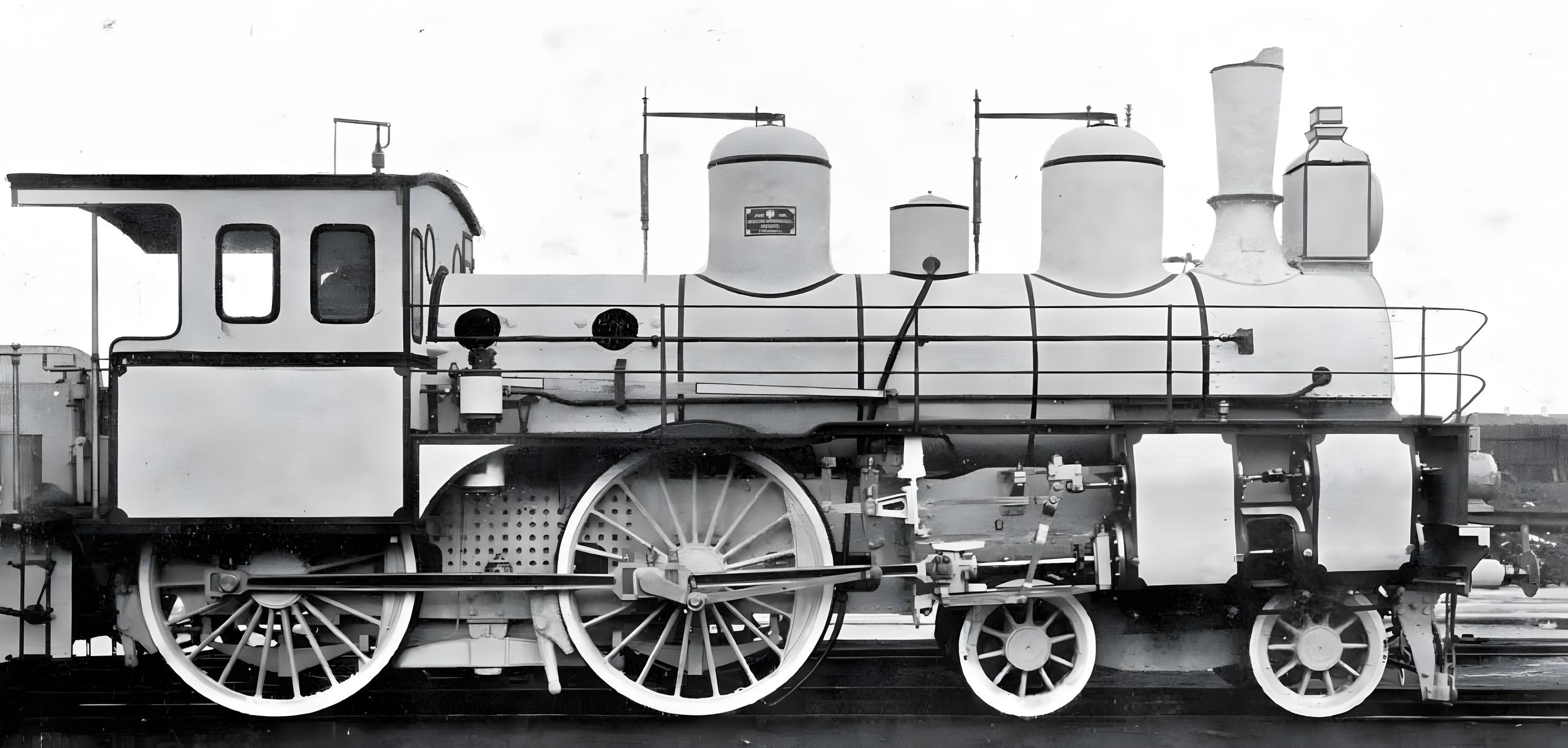

Image of locomotive
Locomotive Magazine, December 1900

The designation П (P) stood for a number of 4-4-0 four-cylinder tandem compound express locomotives. They had some similarities with the Ie of the MÁV. The first of 169 were built in 1891 by Grafenstaden in Alsace. The largest number came from Putilov with 121 between 1897 and 1900. These were designated ПП from 1912 to distinguish them from the other builders.

The largest operator of this variant was the Saint Petersburg–Warsaw Railway with 67. There they hauled express trains of 250 tonnes and reached a speed of slightly more than 100 km/h. Their top speed with light trains was officially 100 versts per hour, what equaled 107 km/h or 66 mph. Some were also used for services on the Trans-Siberian Railway. They were the last four-coupled express locomotives in Russia and were followed by the 2-6-0.

General
Built1891, 1895-1900, 1902-1905
ManufacturerSACM, Putilov, Kolomna, Odessa
Wheel arr.4-4-0 (American)
Gauge5 ft 0 in (Broad gauge)
Dimensions and Weights
Wheelbase24 ft 7 1/4 in
Rigid wheelbase9 ft 10 1/8 in
Service weight128,088 lbs
Adhesive weight67,020 lbs
Total weight205,471 lbs
Axle load33,510 lbs
Fuel capacitycoal
Boiler
Grate area28.2 sq ft
Firebox area147.3 sq ft
Tube heating area1,425.1 sq ft
Evaporative heating area1,572.4 sq ft
Total heating area1,572.4 sq ft
Power Plant
Driver diameter78.7 in
Boiler pressure194 psi
Expansion typecompound
Cylindersfour, HP: 14 3/8 x 24 in
and LP: 21 9/16 x 24 in
Power
Power sourcesteam
Estimated power805 hp (600 kW)
Top speed66 mph
Starting effort14,402 lbf
with start valve17,282 lbf
Calculated Values
steam locomotive
express
tandem compound
