Beira Railway classes F2 and F4
South African NG6
go back
Mozambique | 1895
42 produced

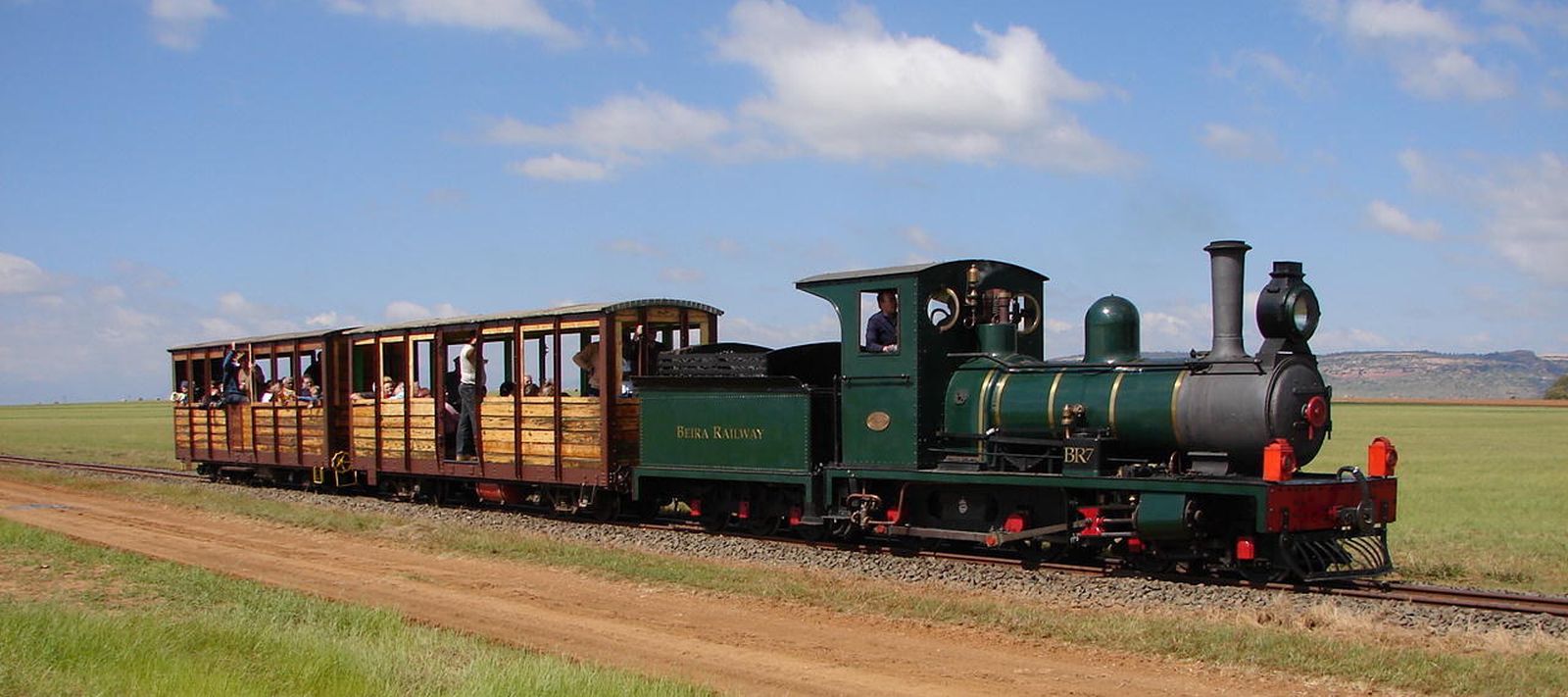

BR7 (NG106) in April 2006 on the Sandstone Estates
BR7 (NG106) in April 2006 on the Sandstone Estates
Col André Kritzinger

When the Beira-Bulawayo railway was built in the 1890s, its operator Pauling and Co. ordered six passenger locomotives from the Falcon Engine and Car Works in England. As the line was two-foot gauge, these 4-4-0 locomotives were very small and had a weight with tender of less than 20 tons. The drivers had a diameter of 32 inches and were mounted inside of the frames. The cylinders measured eight by 15 inches. As the construction of the line was subcontracted to Alfred Lawley, these locomotives were nicknamed “Lawleys”, but also “Falcons” after their manufacturer. Their official designation was F2.

Only one year after the delivery of the original six locomotives, production of a heavier variant called F4 was started. These had a larger boiler with a higher pressure, larger cylinders and larger drivers. Visual distinguishing features were the modified design of the louvres on the cab sides and the running boards which made a step in front of the cab due to the larger drivers. By 1898, 26 F2 had been built by Falcon and ten more by Glasgow Railway Engineering led by Dugald Drummond. On the grades of the Beira line, these locomotives could haul 180 tons, compared to 160 tons with the F2.

Due to growing volumes of freight and passengers, the Beira-Bulawayo line had to be converted to Cape gauge in 1900. Initially, most locomotives of the F2 and F4 classes were stored, with only six in use on the Ayshire Railway that still operated on two-foot gauge. Since South African Railways needed to replace locomotives needed for military service in German South West Africa, they bought 13 of the locomotives which were stored in Mozambique. Around 1930, these received the designation NG6 unter which there are better known today. Service with SAR ended in 1935, but some were used by private operators until 1957. Today two can be found in working order on the Sandstone Estates and two are on display at the Vale of Rheidol Museum.

VariantF2F4
General
Built18951896-1898
ManufacturerFalcon Engine and Car Works, Glasgow Railway Engineering
Wheel arr.4-4-0 (American)
Gauge2 ft (Two feet)
Dimensions and Weights
Length31 ft 5 1/2 in
Wheelbase13 ft 9 1/4 in14 ft
Rigid wheelbase5 ft 5 in
Total wheelbase25 ft 2 1/4 in26 ft
Service weight25,760 lbs31,360 lbs
Adhesive weight20,160 lbs
Total weight48,160 lbs
Axle load11,200 lbs
Water capacity600 us gal937 us gal
Fuel capacity2,800 lbs (coal)4,480 lbs (coal)
Boiler
Grate area4.5 sq ft5.3 sq ft
Firebox area29 sq ft30 sq ft
Tube heating area233 sq ft246 sq ft
Evaporative heating area262 sq ft276 sq ft
Total heating area262 sq ft276 sq ft
VariantF2F4
Power Plant
Driver diameter32 in36 in
Boiler pressure120 psi140 psi
Expansion typesimple
Cylinderstwo, 8 x 15 intwo, 9 x 15 in
Power
Power sourcesteam
Estimated power60 hp (45 kW)70 hp (52 kW)
Starting effort3,060 lbf4,016 lbf
Calculated Values
steam locomotive
passenger
narrow gauge
last changed: 11/2025

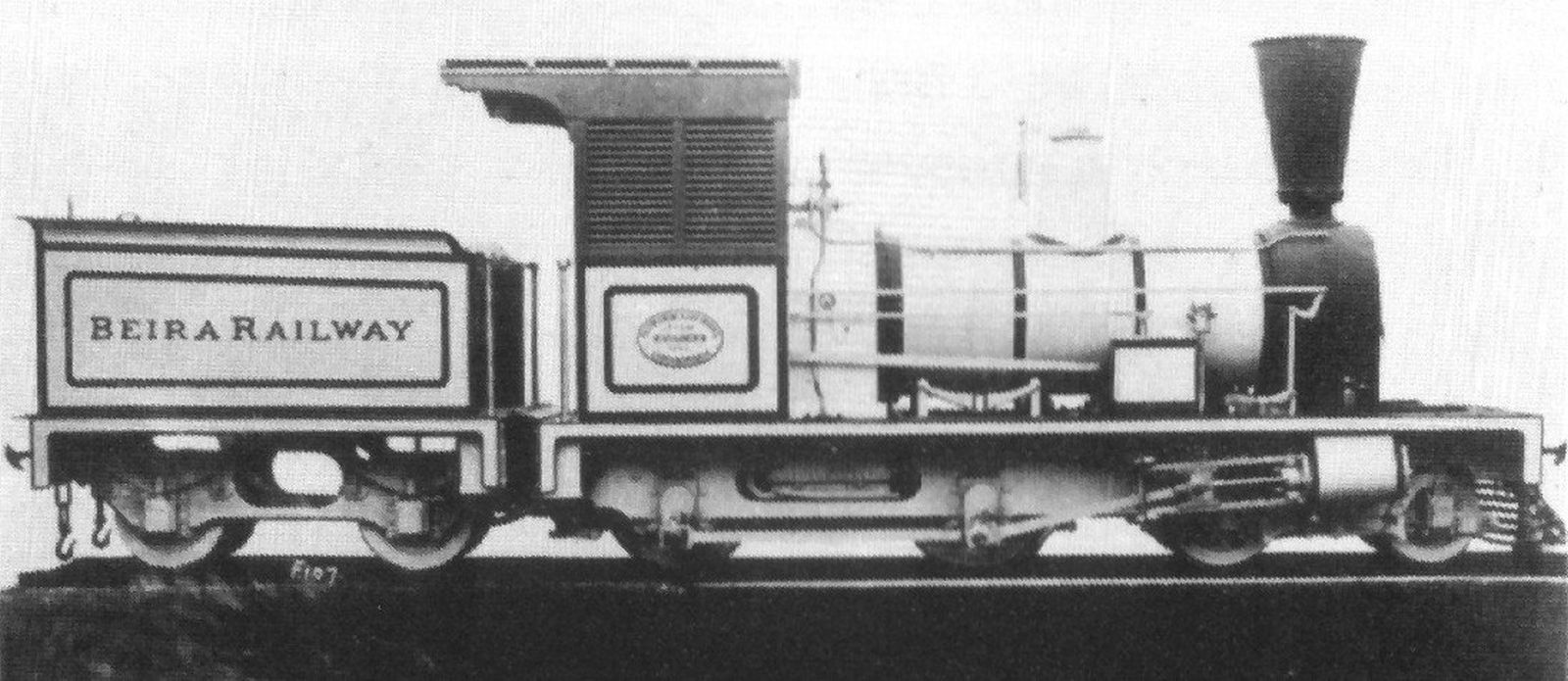

F2
F2
Antony Baxter, “The Two Foot Gauge Enigma - Beira Railway 1890-1900”

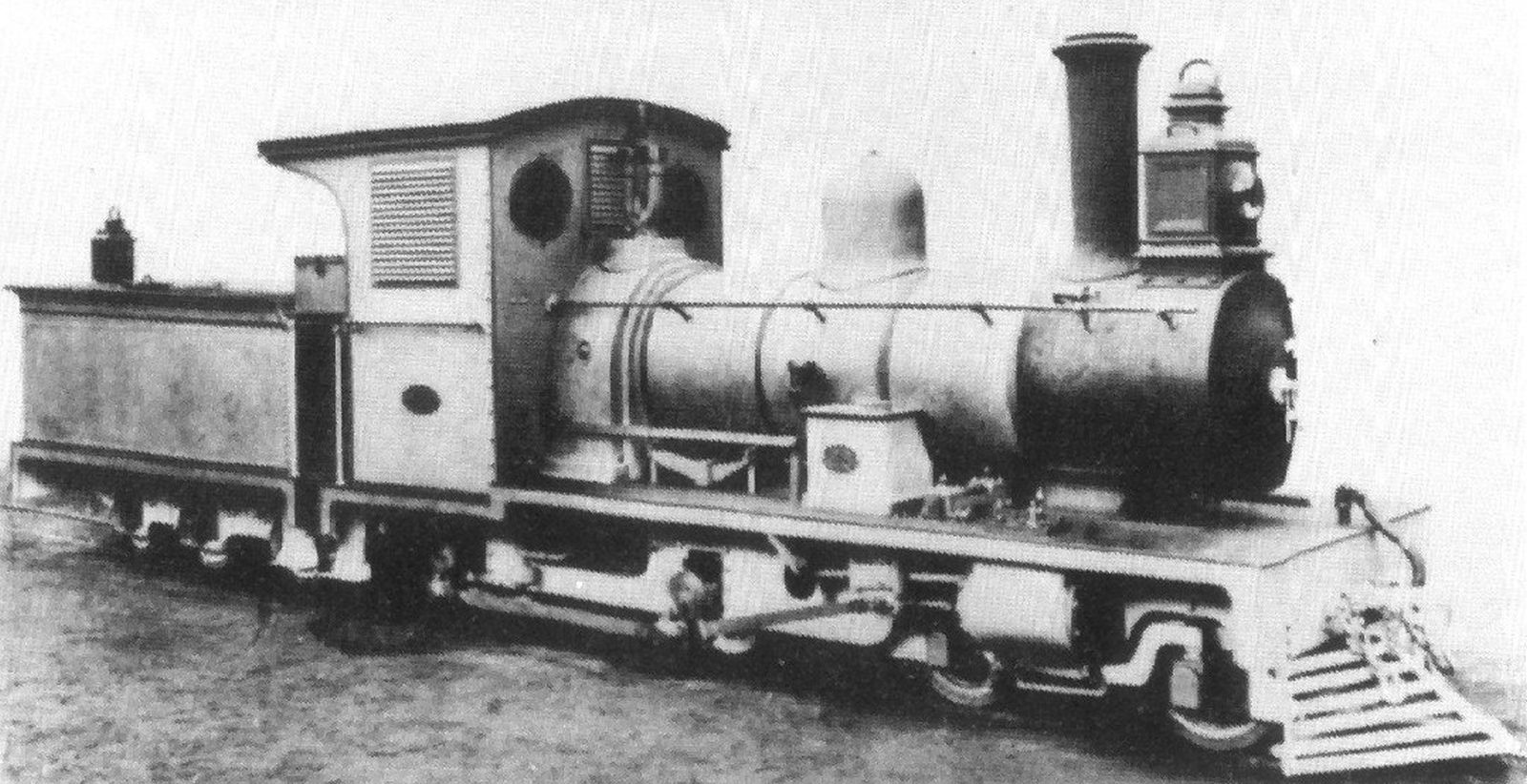

F4
F4
Antony Baxter, “The Two Foot Gauge Enigma - Beira Railway 1890-1900”
