Jodhpur State class HGA
go back
India | 1924
5 produced

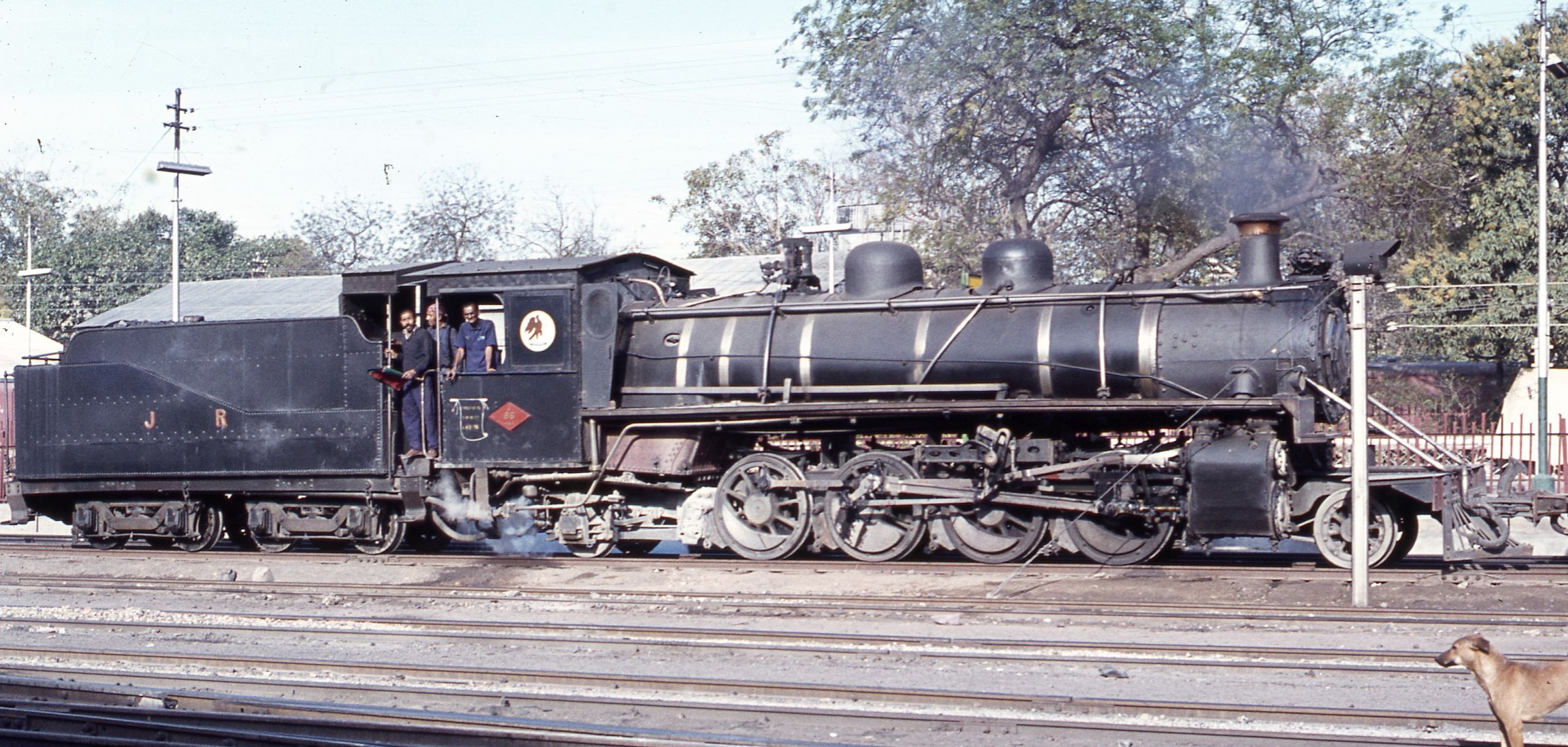

No. 86 at Jodhpur
No. 86 at Jodhpur
flickr / Historical Railway Images

In 1924, when the Jodhpur State Railway was founded from the splitting of the metre-gauge Jodhpur-Bikaner Railway, they received five Mikados from Baldwin. They were of the manufacturer's type 12-26 E 1/4 with works numbers 58052 to 58056. The railway designated them class HGA and gave them the numbers 85 to 89. Although they had drivers of only 44 inches (1,118 mm), they were officially ordered for freight and passenger service. Their main task was to haul grain trains of up to 80 cars, what allowed to increase the haulage capacity by 75 percent.

General
Built1924
ManufacturerBaldwin
Wheel arr.2-8-2 (Mikado)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length55 ft 5 1/2 in
Wheelbase28 ft 9 1/2 in
Rigid wheelbase12 ft 6 in
Total wheelbase48 ft 9 1/2 in
Empty weight91,000 lbs
Service weight104,000 lbs
Adhesive weight80,500 lbs
Total weight183,800 lbs
Axle load20,125 lbs
Water capacity3,603 us gal
Fuel capacity15,000 lbs (coal)
Boiler
Grate area24.9 sq ft
Firebox area99 sq ft
Tube heating area1,039 sq ft
Evaporative heating area1,138 sq ft
Superheater area265 sq ft
Total heating area1,403 sq ft
Power Plant
Driver diameter44 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 16 x 22 in
Power
Power sourcesteam
Estimated power950 hp (708 kW)
Starting effort19,584 lbf
Calculated Values
steam locomotive
freight
passenger
