South Australian class H
go back
Australia | 1870
9 produced

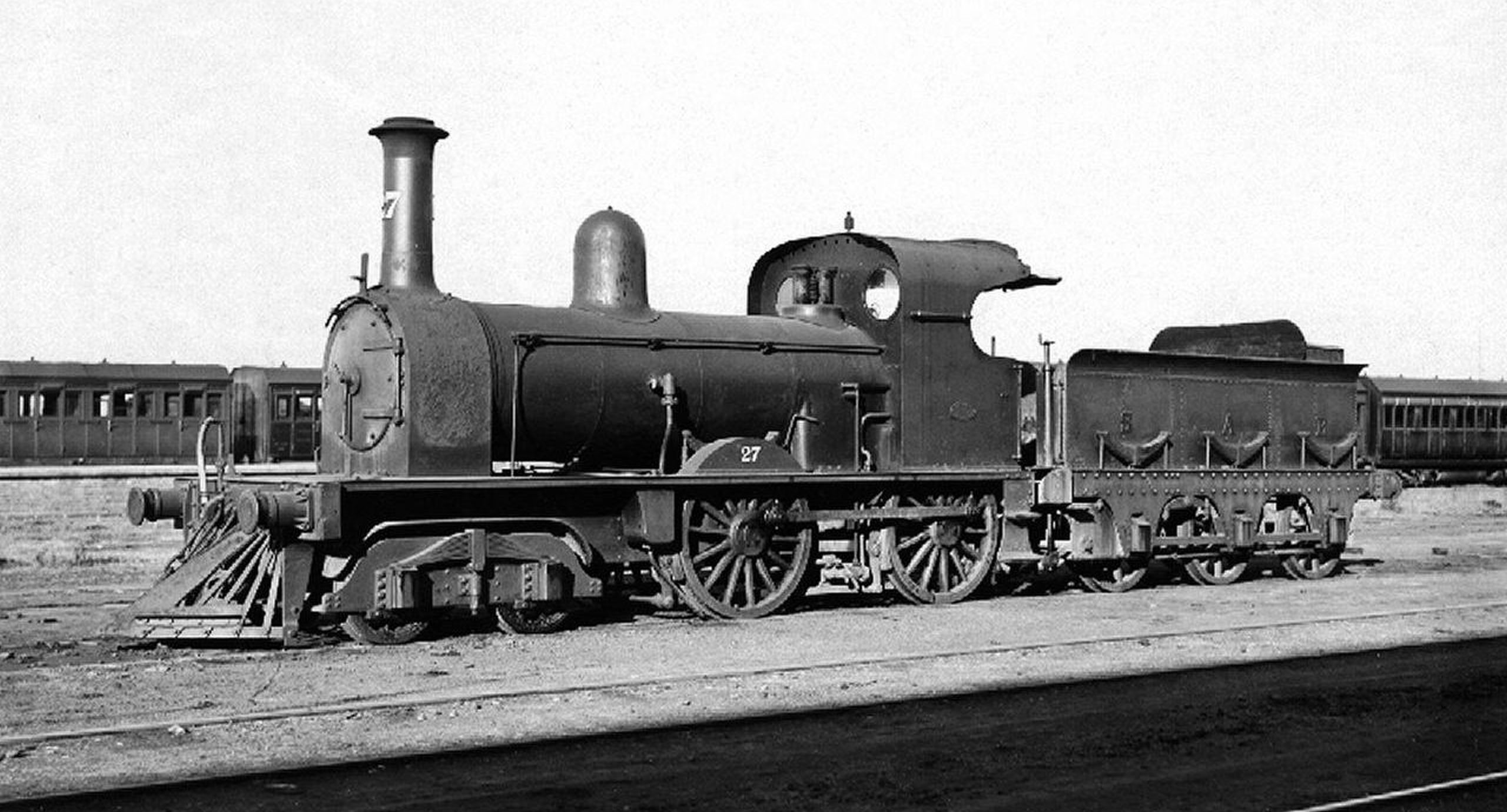

Image of locomotive

The class H was a 4-4-0 goods locomotive designed for work on the line between Roseworthy and Burra-Burra that was limited to light axle loads. It used the same boiler as the 2-4-0 of the class C, but had less load on the individual axles due to the bogie at the front. The first three were built by Robert Stephenson & Co. in 1870, but their good performances led to three more orders which brought the total to nine. From 1886, they were replaced by the 4-6-0 class R on their original line and were transferred to another line. One was withdrawn in 1888, but the SAR has already begun to rebuild all others in 1880. The rebuilding process was completed in 1910 and seven members of the class survived until the twenties. More withdrawals followed and the last one was gone by 1930.

General
Built1870-1877
ManufacturerRobert Stephenson & Co.
Wheel arr.4-4-0 (American)
Gauge5 ft 3 in (Irish broad gauge)
Dimensions and Weights
Length44 ft 6 in
Wheelbase18 ft
Rigid wheelbase7 ft 6 in
Service weight58,643 lbs
Adhesive weight39,424 lbs
Total weight98,448 lbs
Axle load19,712 lbs
Water capacity1,273 us gal
Fuel capacity8,400 lbs (coal)
Boiler
Grate area12.7 sq ft
Firebox area73.1 sq ft
Tube heating area780.6 sq ft
Evaporative heating area853.7 sq ft
Total heating area853.7 sq ft
Power Plant
Driver diameter54 in
Boiler pressure130 psi
Expansion typesimple
Cylinderstwo, 14 x 20 in
Power
Power sourcesteam
Estimated power225 hp (168 kW)
Starting effort8,021 lbf
Calculated Values
steam locomotive
freight
