Milwaukee Road class H8
go back
| 1904
9 produced

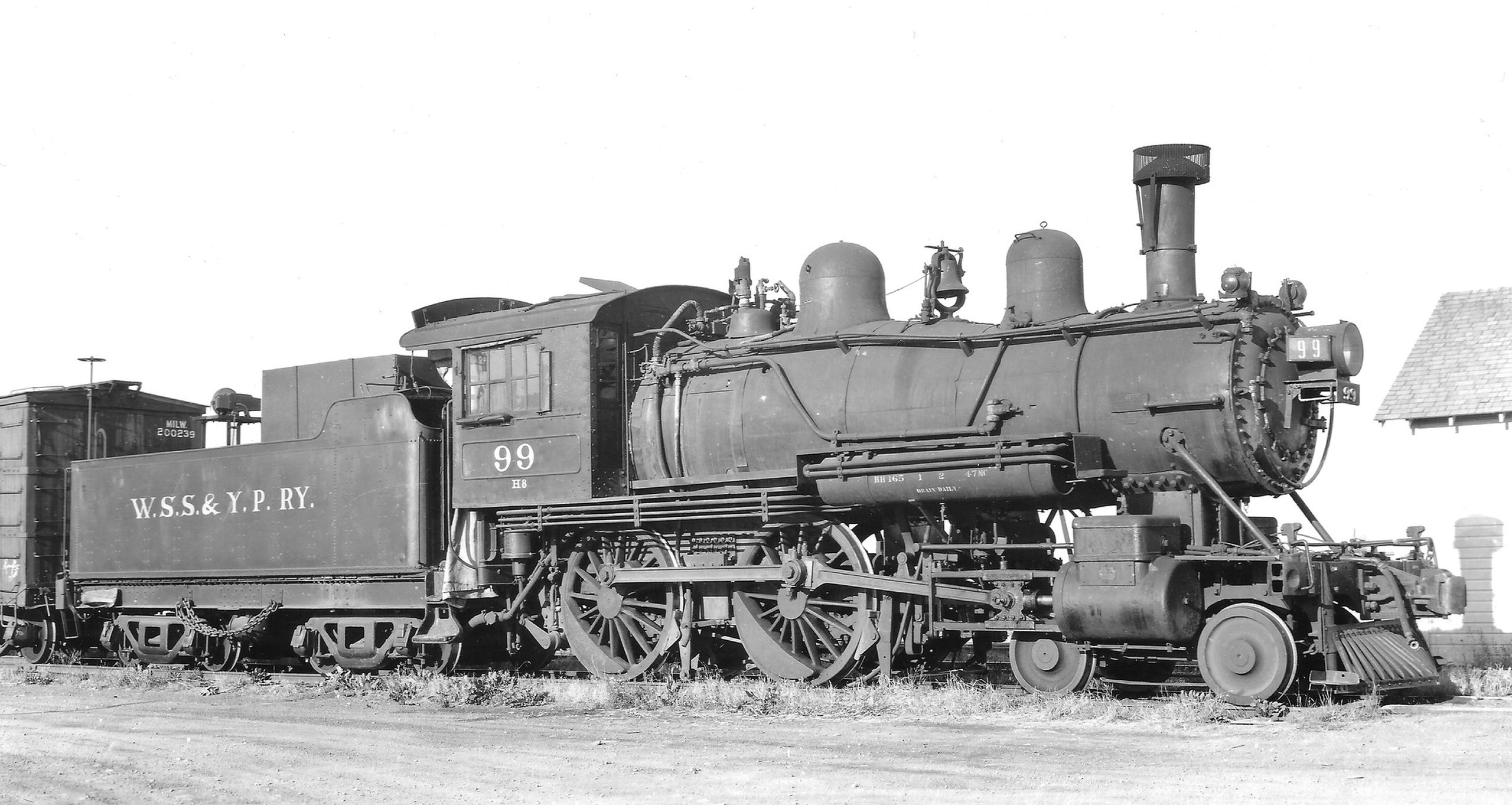

White Sulfur Springs & Yellowstone Park Railway No. 99 in 1947 at White Sulphur Springs
White Sulfur Springs & Yellowstone Park Railway No. 99 in 1947 at White Sulphur Springs
Taylor Rush collection

In August 1904, Rogers built five relatively large 4-4-0 for the Southern Indiana Railroad. They carried the works numbers 6228 to 6232, had drivers of 68 inches and cylinders of 18 by 26 inches. In August of the following year, four largely identical locomotives were delivered to the Chicago Southern. Their builder was now called ALCO-Rogers and works numbers were 37559 to 37562. One change was that the drivers now only measured 67 inches.

Later the two railroads formed the Chicago, Terre Haute & Southeastern, what in turn was leased by the Milwaukee Road in 1921. The locomotives were originally numbered 206 to 214 and later 900 to 908. Six of the nine locomotives were retired in November 1934, while the others were used by subsidiaries of the Milwaukee Road on branch lines. After three additional renumberings, they became 97 to 99 in 1945. For example, No. 99 shown in the photo was used by the White Sulfur Springs & Yellowstone Park Railway in its last years. This one was scrapped in September 1949, the other two were scrapped in 1947 and 1951.

General
Built1904-1905
ManufacturerRogers
Wheel arr.4-4-0 (American)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase22 ft 10 in
Rigid wheelbase8 ft
Total wheelbase49 ft 11 in
Service weight131,000 lbs
Adhesive weight85,600 lbs
Total weight243,000 lbs
Water capacity5,000 us gal
Fuel capacity20,000 lbs (coal)
Boiler
Grate area26.8 sq ft
Firebox area148 sq ft
Tube heating area1,581 sq ft
Evaporative heating area1,729 sq ft
Total heating area1,729 sq ft
Power Plant
Driver diameter67 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 18 x 26 in
Power
Power sourcesteam
Estimated power900 hp (671 kW)
Starting effort19,237 lbf
Calculated Values
steam locomotive
passenger
freight
