Buenos Aires Great Southern classes 6, 6A and 6B
go back
Argentina | 1888
30 produced

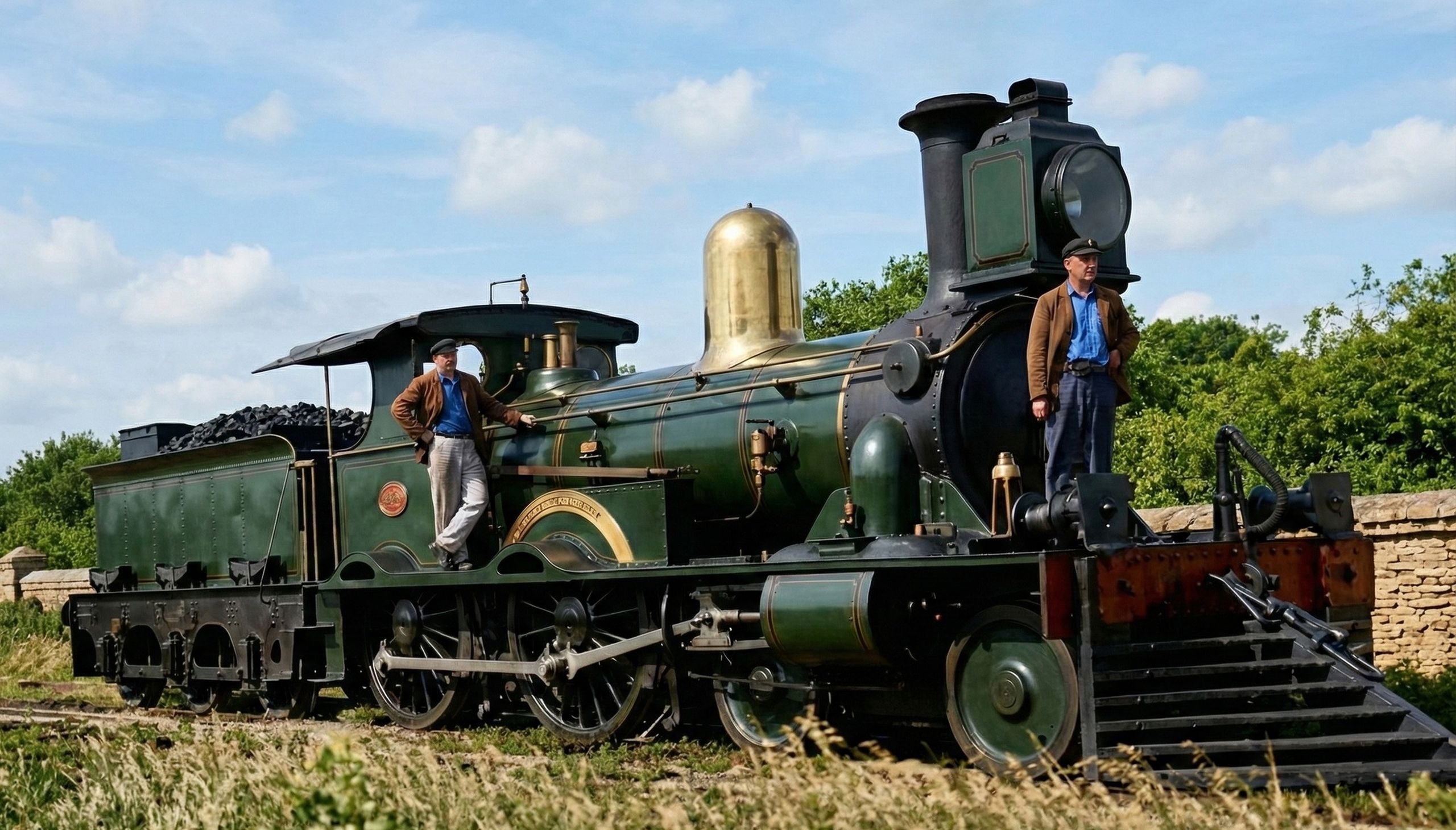

Image of locomotive
Facebook / Tren Rodante

In 1888 Beyer, Peacock & Co. built eight 4-4-0 locomotives for the Buenos Aires Great Southern. Two of these were built as Wordsell-von Borries cross-compounds to compare them with the six simple locomotives. The simple ones became class 6 and the compound ones became class 6A. In service it turned out that maintenance of the compound variant was not more complicated compared to the simple variant, while consumption of water and coal was less. In the result of the comparison, Robert Gould wrote that simple engines were only better in shunting service and local traffic. This was especially true for railways without many steep inclines like this one.

This meant that further locomotives were also to be built as compounds. These were designated class 6B and 22 were completed in 1890, also by Beyer Peacock. These featured a larger boiler and cylinder diameters which had been increased by one inch. Before production started, the design of the automatic valve had to be altered. The original design tended to produce sluggish jerks when it switched from simple to compound mode too early.

Variant66A6B
General
Built18881890
ManufacturerBeyer, Peacock & Co.
Wheel arr.4-4-0 (American)
Gauge5 ft 6 in (Indian broad gauge)
Dimensions and Weights
Wheelbase20 ft 6 in
Rigid wheelbase7 ft 7 in
Total wheelbase39 ft 3 in
Service weight86,464 lbs90,888 lbs93,010 lbs
Adhesive weight50,400 lbs52,640 lbs53,757 lbs
Total weight143,024 lbs147,448 lbs149,570 lbs
Axle load25,312 lbs26,432 lbs27,439 lbs
Water capacity2,402 us gal
Fuel capacity6,720 lbs (coal)
Boiler
Grate area9.4 sq ft10.2 sq ft
Firebox area86 sq ft93 sq ft
Tube heating area843 sq ft989 sq ft
Evaporative heating area929 sq ft1,082 sq ft
Total heating area929 sq ft1,082 sq ft
Variant66A6B
Power Plant
Driver diameter68 in
Boiler pressure140 psi
Expansion typesimplecompound
Cylinderstwo, 16 x 24 intwo, HP: 16 x 24 in
and LP: 23 1/4 x 24 in
two, HP: 17 x 24 in
and LP: 24 1/2 x 24 in
Power
Power sourcesteam
Estimated power275 hp (205 kW)300 hp (224 kW)
Starting effort10,752 lbf7,297 lbf8,193 lbf
with start valve8,756 lbf9,832 lbf
Calculated Values
steam locomotive
express
