Gran Oeste Argentino No. 311 to 320
go back
Argentina | 1907
10 produced

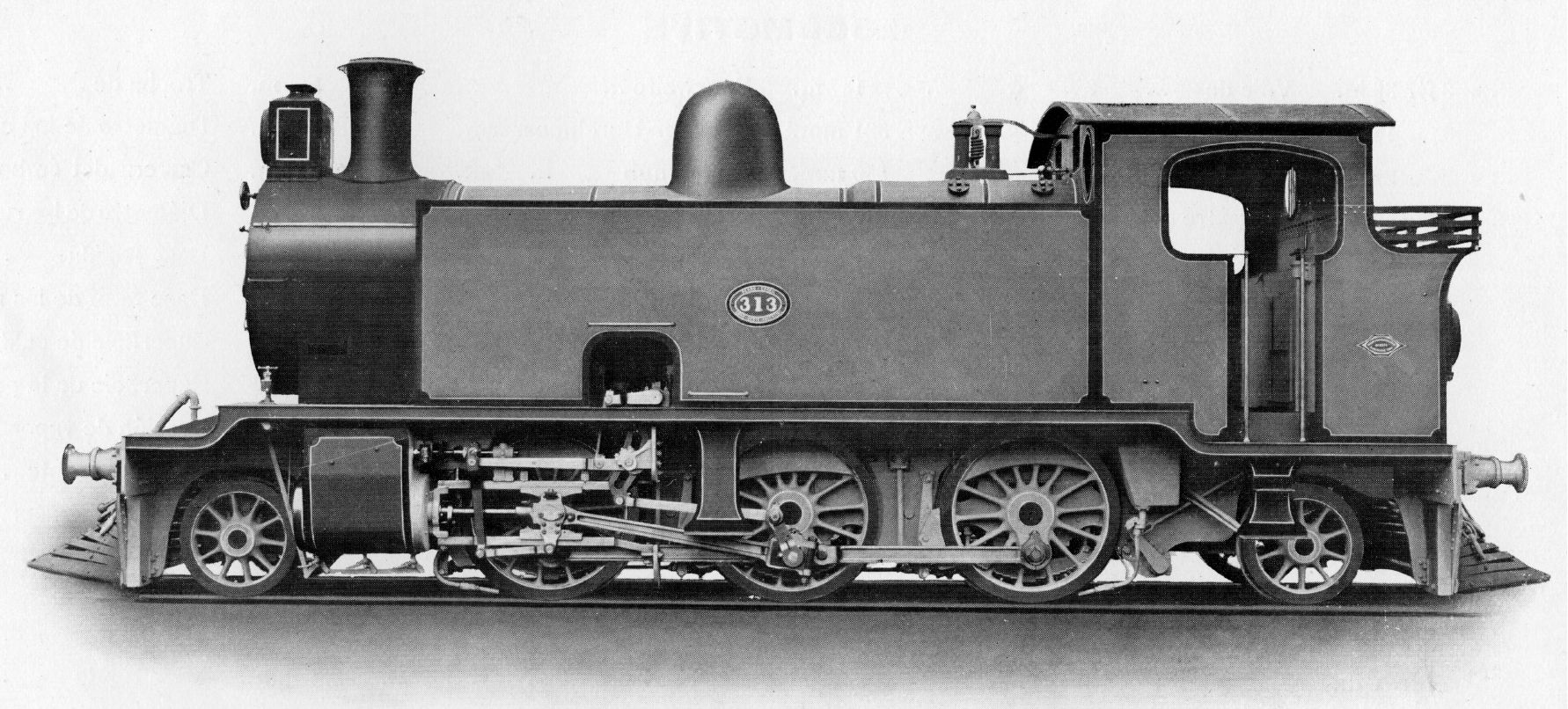

No. 313 in the 1910 Stephenson catalogue
No. 313 in the 1910 Stephenson catalogue

The Argentine Great Western Railway, or Gran Oeste Argentino, received ten 2-6-2T tank locomotive from Robert Stephenson & Co. in 1907. These carried the works numbers 3272 to 3281 and the running numbers 311 to 320. Later they were renumbered 901 to 910. Designed by Charles H. Fox, they had outside cylinders and Walschaert valve gear. The side tanks with a total capacity of 2,000 imperial gallons were relatively high and might have obstructed the view forward.

General
Built1907
ManufacturerRobert Stephenson & Co.
Wheel arr.2-6-2T (Prairie)
Gauge5 ft 6 in (Indian broad gauge)
Dimensions and Weights
Wheelbase26 ft 6 in
Rigid wheelbase12 ft
Service weight159,488 lbs
Adhesive weight99,000 lbs
Axle load33,699 lbs
Water capacity2,402 us gal
Fuel capacity6,160 lbs (coal)
Boiler
Grate area22.5 sq ft
Firebox area109.3 sq ft
Tube heating area1,283.8 sq ft
Evaporative heating area1,393.1 sq ft
Total heating area1,393.1 sq ft
Power Plant
Driver diameter54 in
Boiler pressure180 psi
Expansion typesimple
Power
Power sourcesteam
Estimated power575 hp (429 kW)
Calculated Values
steam locomotive
tank locomotive
freight
passenger
