Hungarian State Railways class 301
go back
Hungary | 1911
22 produced

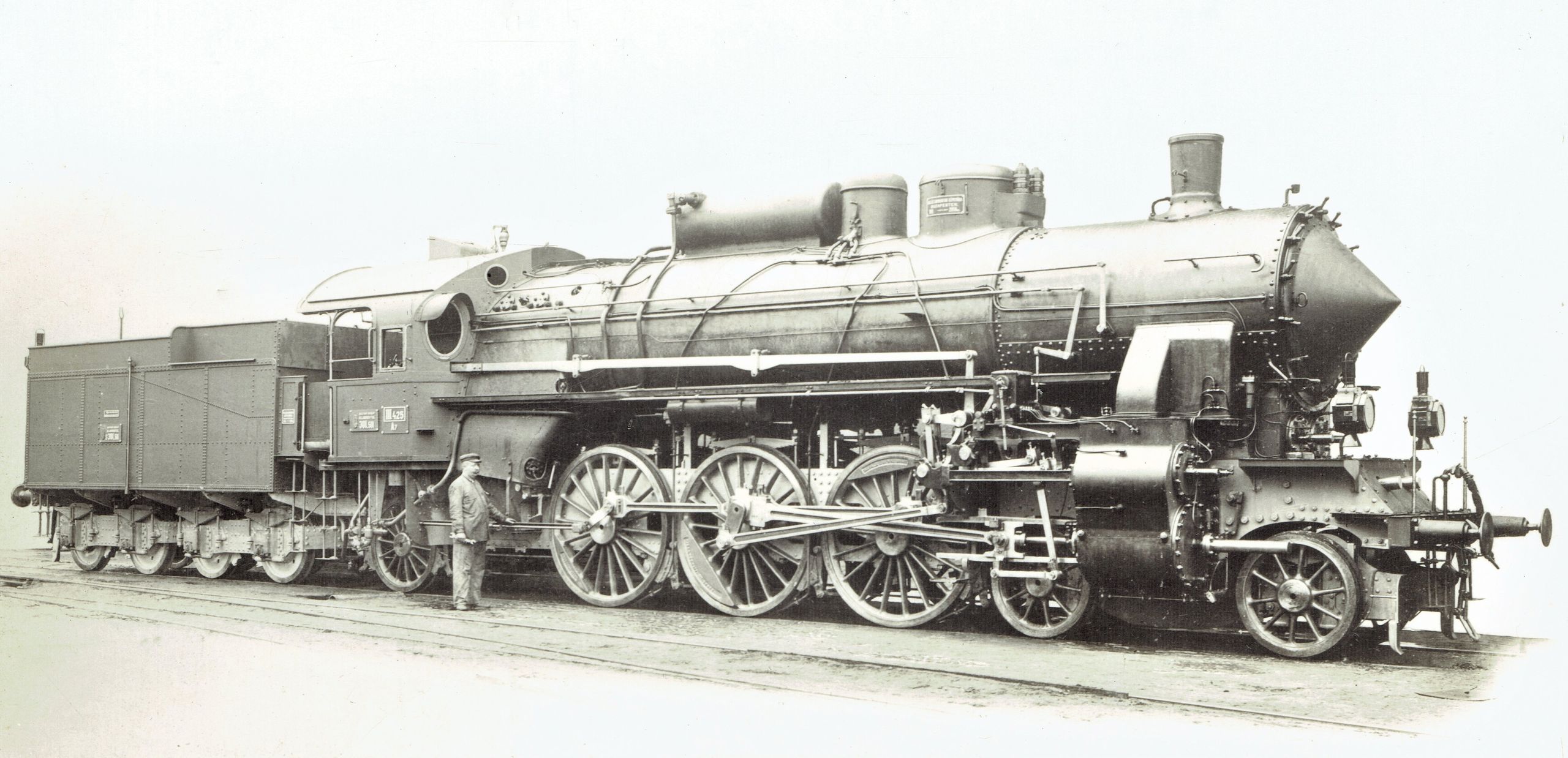

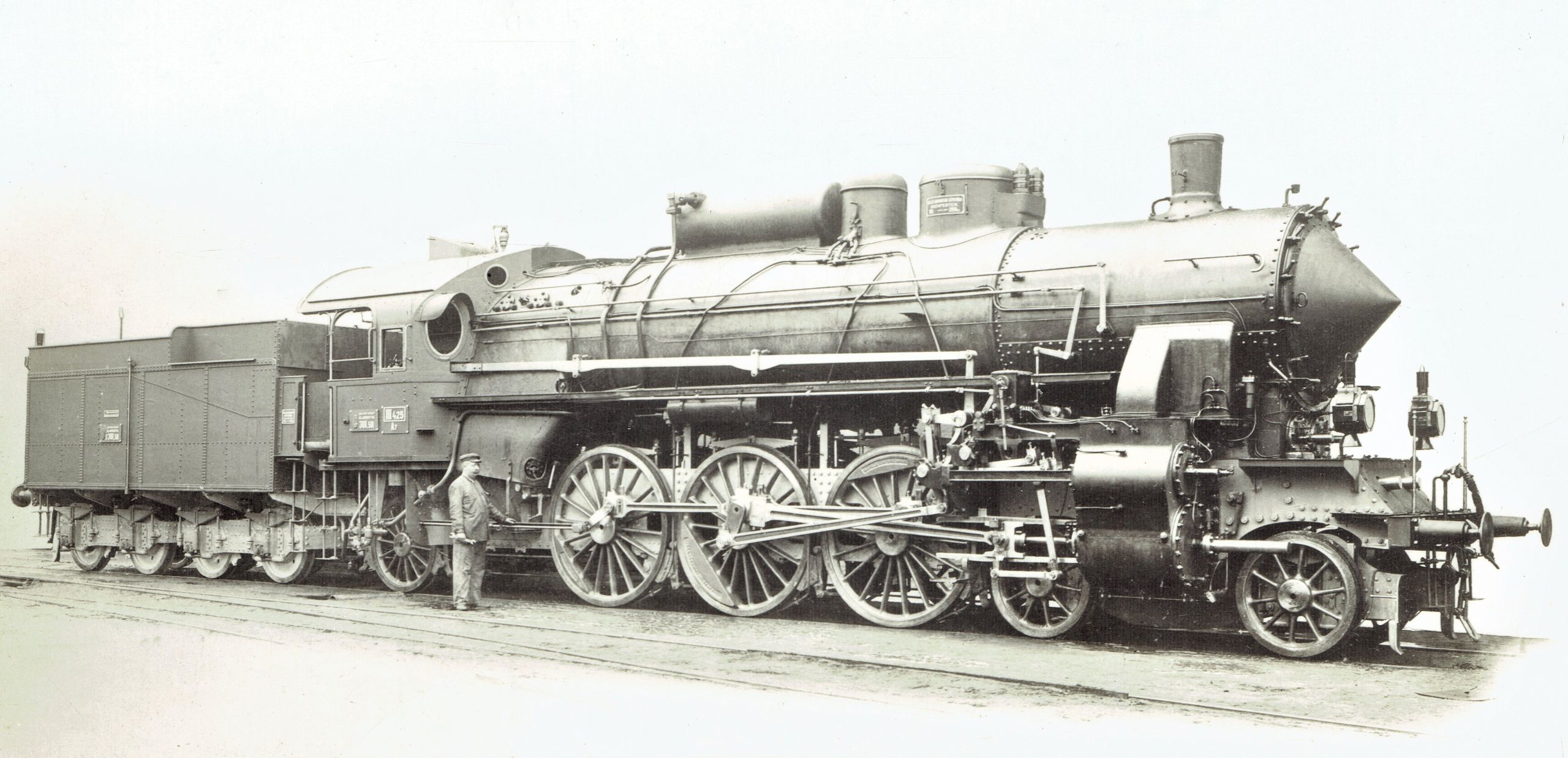

Image of locomotive
flickr/Historical Railway Images

The class 301 was a four-cylinder Pacific of which two each were built by MÁVAG in 1911 with simple and compound expansion. The simple locomotives were numbered 301.001 and 002, while the compound locomotives were 301.501 and 502. They looked fairly impressive with conical smokebox door and wind cutter cab. The drivers measured only 1,826 mm for better pulling power on mountainous lines. The boilers were superheated and had a large grate of 4.846 square meters. The compound variant was designed after the De Glehn system and operated at a pressure of 16 bars, while the simple variant was set at 12 bars.

Approved for 100 km/h, they managed to haul a 700-tonne train with 120 km/h on the level on test runs. Comparisons showed that the compound variant was more powerful and economical than the simple variant, but more complicated to maintain and operate. In the result, the next 18 locomotives were built in the simple variant. Production stopped in 1914 due to World War I. They were withdrawn between 1966 and 1968.

Variant301.0301.500
General
Built1911-1914
ManufacturerMÁVAG
Wheel arr.4-6-2 (Pacific)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length45 ft 3 7/16 in
Length loco71 ft 6 1/4 in
Wheelbase37 ft 2 7/16 in
Rigid wheelbase12 ft 8 3/4 in
Empty weight170,638 lbs
Service weight189,597 lbs194,888 lbs
Adhesive weight105,822 lbs
Total weight313,365 lbs318,656 lbs
Axle load35,274 lbs
Water capacity6,868 us gal
Fuel capacity17,637 lbs (coal)
Boiler
Grate area52.2 sq ft
Firebox area180.8 sq ft
Tube heating area2,638.2 sq ft
Evaporative heating area2,819.1 sq ft
Superheater area573.7 sq ft
Total heating area3,392.8 sq ft
Variant301.0301.500
Power Plant
Driver diameter71.9 in
Boiler pressure174 psi232 psi
Expansion typesimplecompound
Cylindersfour, 16 15/16 x 26 infour, HP: 16 1/8 x 26 in
and LP: 25 9/16 x 26 in
Power
Power sourcesteam
Indicated power1,958 hp (1,460 kW)
Top speed62 mph
Starting effort30,641 lbf26,583 lbf
with start valve31,900 lbf
Calculated Values
steam locomotive
express
De Glehn compound
