Virginian class PA
go back
United States | 1920
6 produced

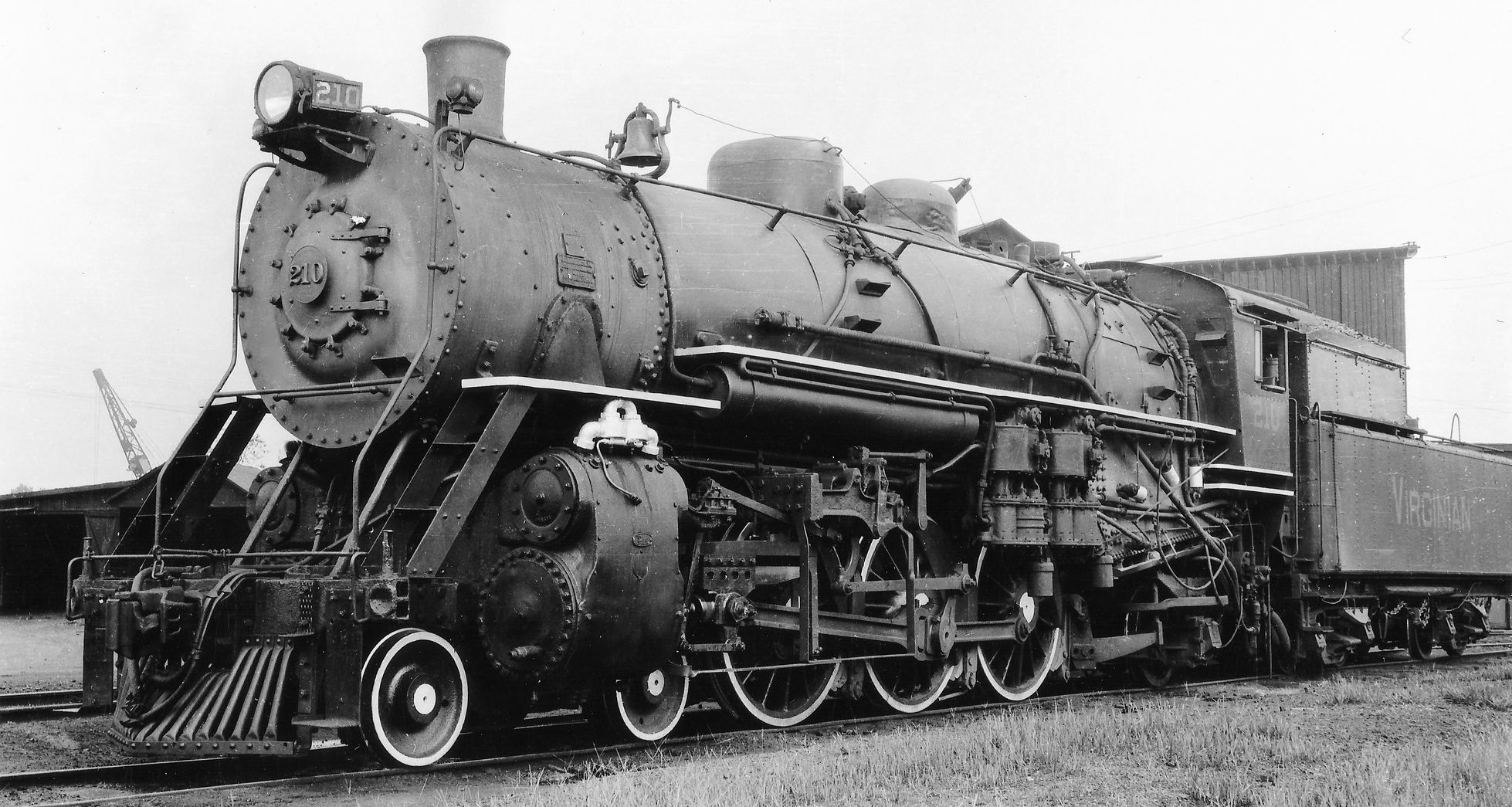

Image of locomotive
collection Taylor Rush

In 1920, ALCO-Richmond built six Pacifics for the Virginian which were designated class PA and numbered 210 to 215. For passenger service on mountainous lines, they had drivers of only 69 inches. Their cylinders measured 26 by 28 inches and the boiler pressure was originally 190 psi. Other features were a Duplex stoker and two cross-compound air pumps under the left running board which can be seen on the photo. Later the boiler pressure was increased to 200 psi. Their retirement came in the mid-fifties.

General
Built1920
ManufacturerALCO
Wheel arr.4-6-2 (Pacific)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase34 ft 9 in
Rigid wheelbase12 ft 2 in
Total wheelbase70 ft 7 in
Service weight298,000 lbs
Adhesive weight189,000 lbs
Total weight486,100 lbs
Axle load63,800 lbs
Water capacity10,500 us gal
Fuel capacity28,000 lbs (coal)
Boiler
Grate area66.7 sq ft
Firebox area293 sq ft
Tube heating area3,121 sq ft
Evaporative heating area3,414 sq ft
Superheater area905 sq ft
Total heating area4,319 sq ft
Power Plant
Driver diameter69 in
Boiler pressure190 psi
Expansion typesimple
Cylinderstwo, 26 x 28 in
Power
Power sourcesteam
Estimated power2,800 hp (2,088 kW)
Starting effort44,302 lbf
Calculated Values
steam locomotive
passenger
