Great Central classes 8K and 8M
London & North Eastern classes O4 and O5
go back
Great Britain | 1911
145 produced

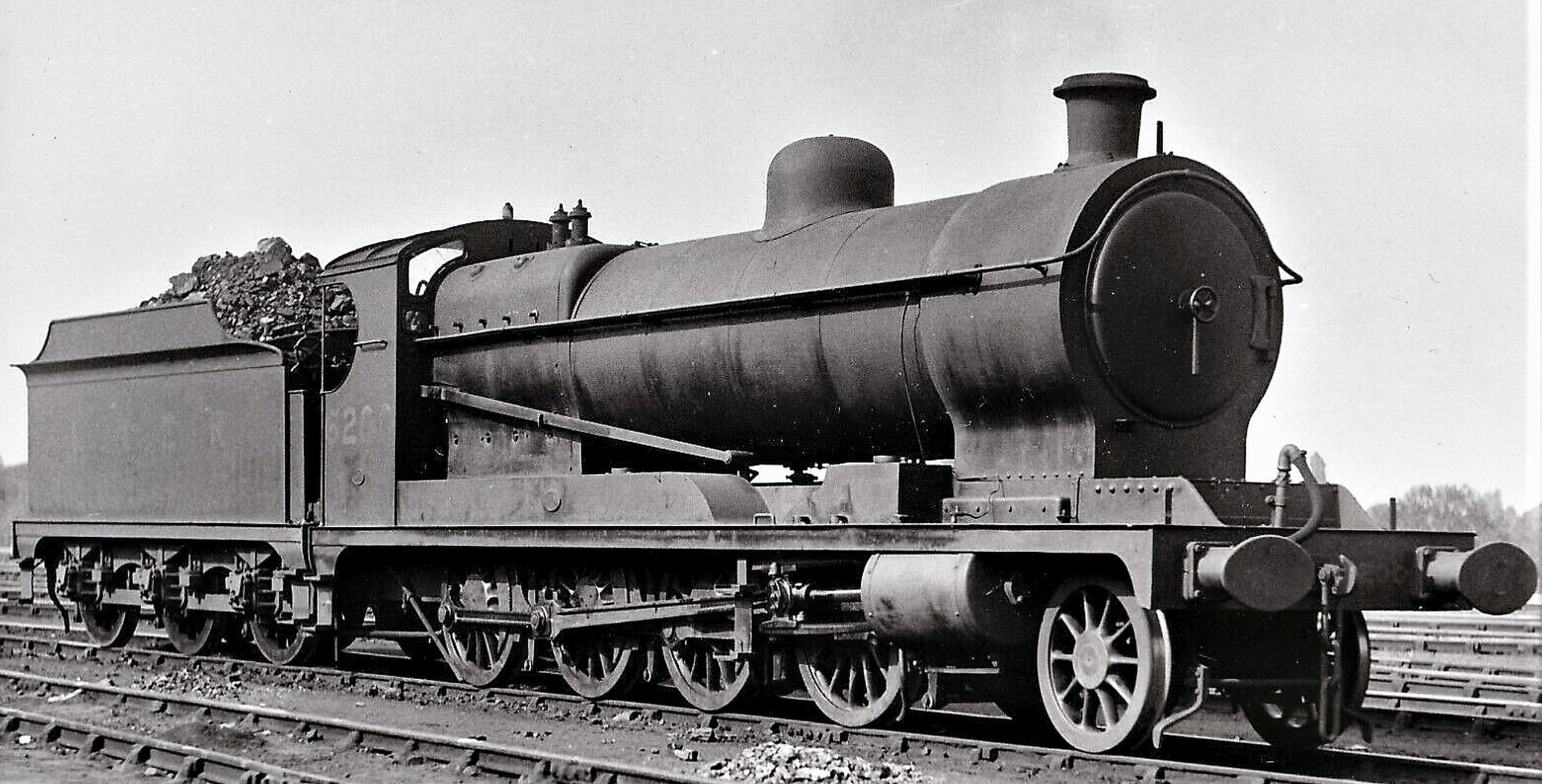

Image of locomotive
flickr/stratfordman72

The GCR 8K was a class of 2-8-0 freight locomotives designed by John G. Robinson, basically a superheated variant of his 8A with a leading axle. A total of 126 were built between 1911 and 1914. 56 of these had been built in the CGR's Gorton works, 20 by Kitson and 50 by North British. In World War I, this design was slightly modified and built for wartime use as ROD 2-8-0. A total of 521 had been completed when the war ended. Shortly after the war, the GCR built 19 of a variant with a slightly larger boiler as class 8M.

In 1923, the LNER inherited 128 of the class 8K and 17 of the 8M, since two 8M had been rebuilt into 8K in 1922. The 8K became class O4 and the 8M became class O5. Of the ROD 2-8-0, 273 were still remaining in Britain and were now also integrated into class O5. The LNER continued to rebuild the O5, or the former 8M, into the O4. It took until 1946 that all had been rebuilt.

In World War II, 92 locomotives were brought to the Middle East for wartime service and never returned. Between 1944 and 1949, 58 were rebuilt by Thompson into his class O1. After different smaller rebuilds, the LNER designated the basic variant O4/1 and the rebuilt ones became O4/2 to O4/8. British Railways took over 329 in 1948 and withdrew them between 1958 and 1966. The only one of the non-ROD locomotives that was preserved is 63601. It is still in working condition and operates on the preserved Great Central Railway.

Variant8K8M
General
Built1911-19141918-1921
ManufacturerGorton, Kitson & Co., North BritishGorton
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase25 ft 4 in25 ft 6 in
Rigid wheelbase17 ft 1 in
Total wheelbase50 ft 9 in50 ft 11 in
Service weight162,400 lbs168,448 lbs
Adhesive weight147,840 lbs152,096 lbs
Total weight265,776 lbs271,824 lbs
Axle load36,960 lbs38,024 lbs
Water capacity4,804 us gal
Fuel capacity13,440 lbs (coal)
Boiler
Grate area25 sq ft26 sq ft
Firebox area153 sq ft174 sq ft
Tube heating area1,538 sq ft1,641 sq ft
Evaporative heating area1,691 sq ft1,815 sq ft
Superheater area198 sq ft308 sq ft
Total heating area1,889 sq ft2,123 sq ft
Variant8K8M
Power Plant
Driver diameter56 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 21 x 26 in
Power
Power sourcesteam
Estimated power1,050 hp (783 kW)1,150 hp (858 kW)
Starting effort31,327 lbf
Calculated Values
steam locomotive
freight
John George Robinson
