New York, Ontario & Western class P
go back
United States | 1900
20 produced

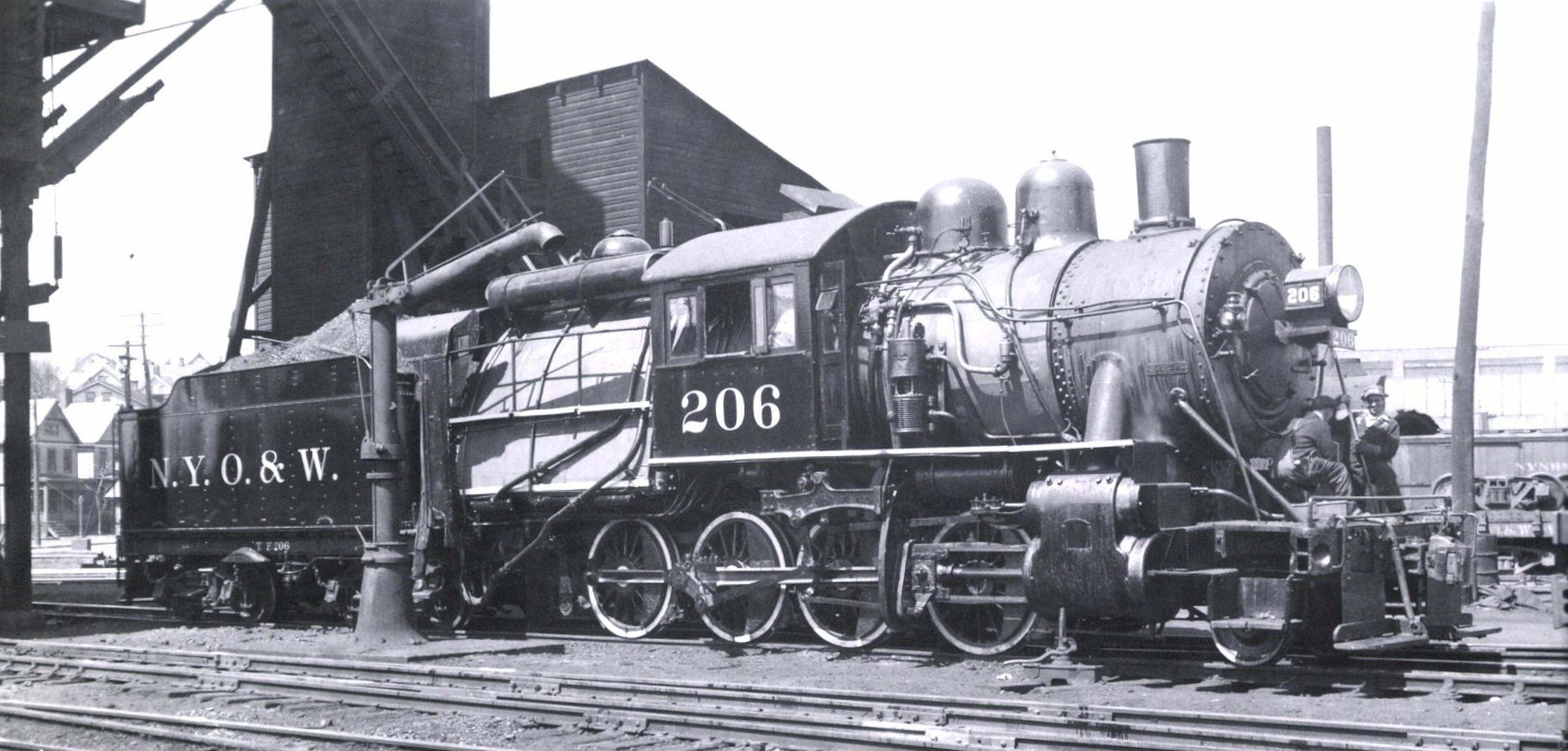

Image of locomotive
Ronald Amberger collection

As the New York, Ontario & Western also hauled anthracite from the Scranton, Pennsylvania area to New York City, they also used it as fuel for their steam locomotives. The class P was a camelback Consolidation designed by George W. West for pusher service on coal trains. ALCO-Cooke built 20 between 1900 and 1904, these were numbered 201 to 220. Starting in 1920, the NYO&W equipped them with superheaters. They remained in service in World War II and were retired in the late forties.

Variantas builtsuperheated
General
Built1900-19041920
ManufacturerALCONYO&W
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length63 ft 2 1/4 in
Wheelbase23 ft 9 in
Rigid wheelbase15 ft 5 in
Total wheelbase53 ft 5 1/4 in
Service weight198,130 lbs202,000 lbs
Adhesive weight170,200 lbs180,000 lbs
Total weight296,139 lbs334,000 lbs
Axle load45,000 lbs
Water capacity4,500 us gal7,000 us gal
Fuel capacity20,000 lbs (coal)24,000 lbs (coal)
Boiler
Grate area87.4 sq ft87.5 sq ft
Firebox area194 sq ft200 sq ft
Tube heating area3,095 sq ft2,148 sq ft
Evaporative heating area3,289 sq ft2,348 sq ft
Superheater area726 sq ft
Total heating area3,289 sq ft3,074 sq ft
Variantas builtsuperheated
Power Plant
Driver diameter55 in
Boiler pressure200 psi185 psi
Expansion typesimple
Cylinderstwo, 21 x 32 intwo, 22 x 32 in
Power
Power sourcesteam
Estimated power1,500 hp (1,119 kW)1,600 hp (1,193 kW)
Starting effort43,619 lbf44,282 lbf
Calculated Values
steam locomotive
freight
camelback
last changed: 04/2026
