Mexican State Railway class G-031
later class GR-3
go back
Mexico | 1936
8 produced

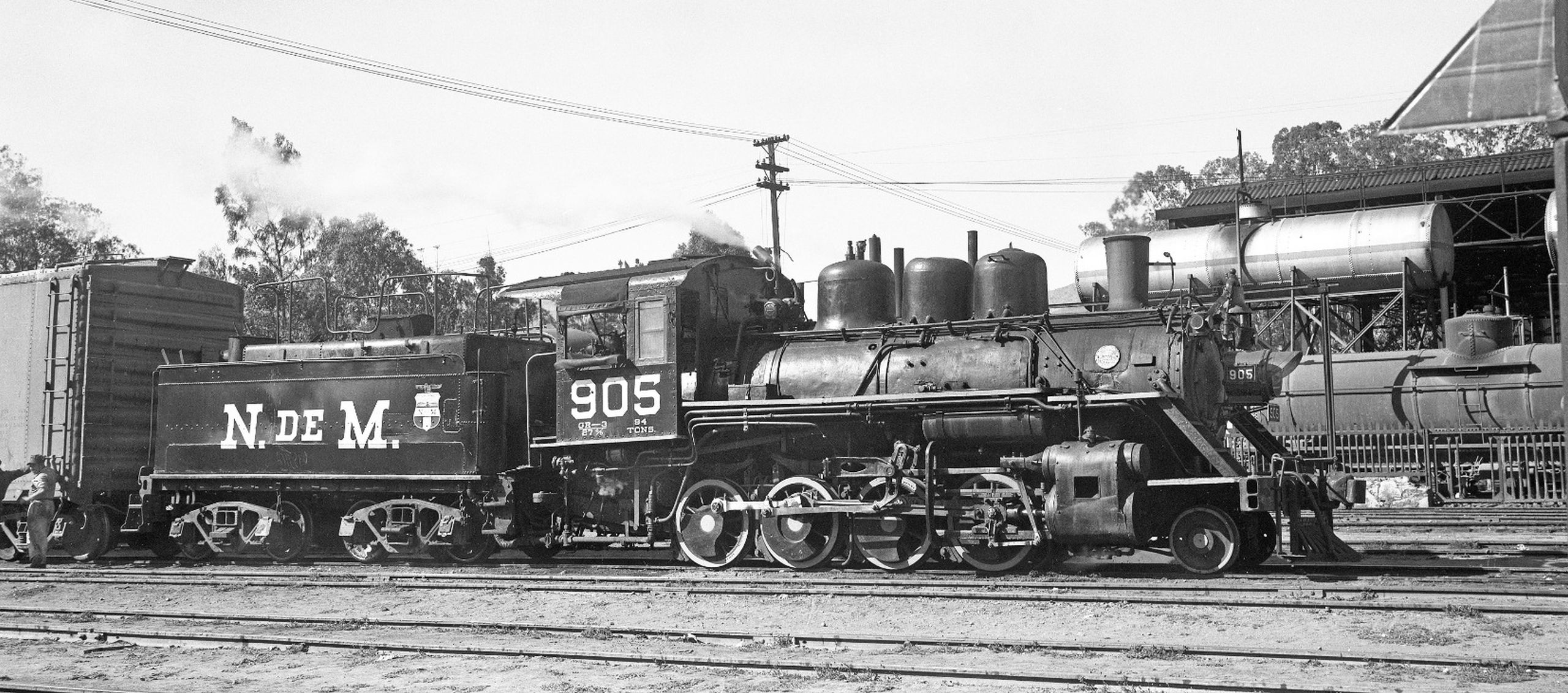

No. 905, ex No. 293 converted to standard gauge, in February 1961 at Oaxaca
No. 905, ex No. 293 converted to standard gauge, in February 1961 at Oaxaca
Greg Maxwell collection

The G-031, sometimes also called GR-031, was a class of superheated Consolidations built for three-foot narrow gauge. It was based on the G-030 and basically had the same boiler. It had the same firebox, but less tubes to make space for the flues which held the superheater elements. The cylinders still measured 18 by 22 inches and the drivers still had a diameter of 41 inches.

Five were built by ALCO-Schenectady in 1936 and numbered 290 to 294. Numbers 295 and 296 followed in 1944. In the same year, the NdeM shops at Acámbaro built No. 297 to the same design. Between 1948 and 1952, the NdeM rebuilt all eight to standard gauge. They were now designated GR-3 and numbered 900 to 907. The class was retired in 1962.

General
Built1936, 1944
ManufacturerALCO, Acámbaro
Wheel arr.2-8-0 (Consolidation)
Gauge3 ft (Three feet), 4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase18 ft 11 in
Rigid wheelbase11 ft 6 in
Total wheelbase46 ft 8 1/2 in
Service weight118,000 lbs
Adhesive weight110,000 lbs
Total weight208,000 lbs
Axle load27,500 lbs
Water capacity3,600 us gal
Fuel capacity2,146 lbs (oil)
Boiler
Grate area18.7 sq ft
Firebox area79 sq ft
Tube heating area1,154 sq ft
Evaporative heating area1,233 sq ft
Superheater area339 sq ft
Total heating area1,572 sq ft
Power Plant
Driver diameter41 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 18 x 22 in
Power
Power sourcesteam
Estimated power800 hp (597 kW)
Starting effort26,600 lbf
Calculated Values
steam locomotive
freight
Schmalpsur
