Bavarian E I (Vauclain)
French State Railway (État) 140-906
go back
Germany | 1899
2 produced

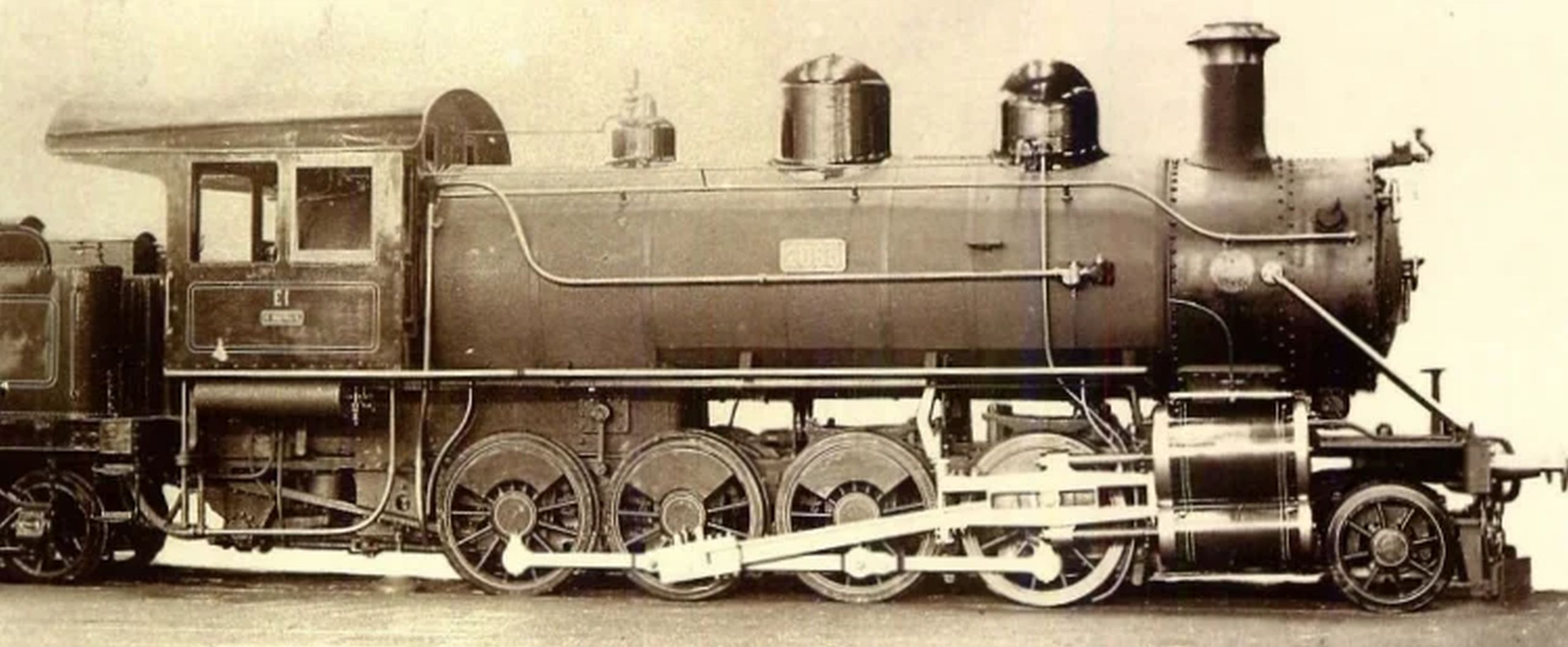

Image of locomotive

Among the Consolidations of the type E I operated by the Bavarian State Railways were two four-cylinder Vauclain Compounds built by Baldwin in 1899, followed by the two S 2/5 Atlantics. The two E I were the first locomotives in Germany to have bar frames. This type of frames was quickly adopted by south German manufacturers and later also found its way into the standard locomotives of the Reichsbahn. The Vauclain drive combined the high pressure cylinders at the bottom and the low pressure cylinders at the top, which acted on common crossheads. Instead of this system, the German builders chose the Von Borries system. The iron fireboxes of the two E I were later replaced by copper. One of them went to France a war reparation and became Number 140-906 of the État.

General
Built1899
ManufacturerBaldwin
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length60 ft 8 3/8 in
Length loco34 ft 7 15/16 in
Wheelbase21 ft 8 in
Rigid wheelbase13 ft 5 in
Total wheelbase51 ft 5 15/16 in
Service weight138,009 lbs
Adhesive weight119,931 lbs
Total weight235,012 lbs
Axle load29,983 lbs
Water capacity4,782 us gal
Fuel capacity14,330 lbs (coal)
Boiler
Grate area33.2 sq ft
Firebox area166.8 sq ft
Tube heating area1,743.2 sq ft
Evaporative heating area1,910.1 sq ft
Total heating area1,910.1 sq ft
Power Plant
Driver diameter50 in
Boiler pressure203 psi
Expansion typecompound
Cylindersfour, HP: 14 x 26 in
and LP: 24 x 26 in
Power
Power sourcesteam
Estimated power939 hp (700 kW)
Top speed31 mph
Starting effort26,293 lbf
with start valve31,552 lbf
Calculated Values
steam locomotive
freight
Vauclain compound
last changed: 07/2026

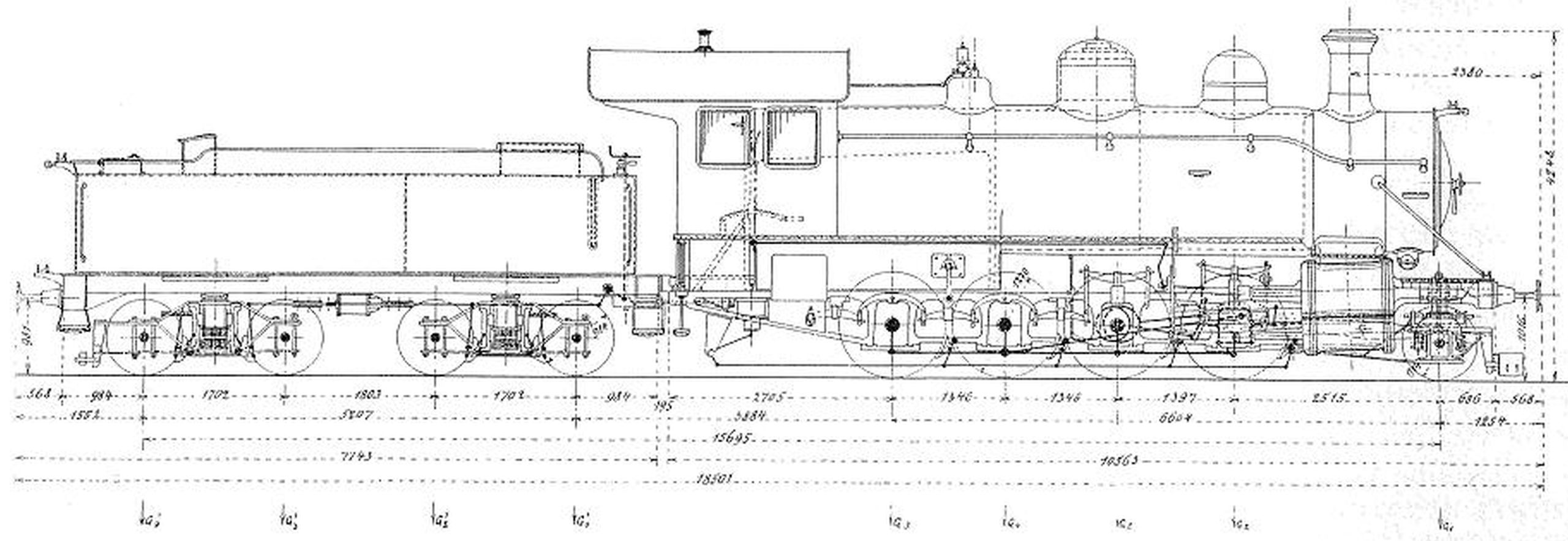

Schematic drawing
